• UKF 719USS25A2100M Super Precision Angular Contact Spindle Bearing 25x42x9mm
1 1

SKU: 719USS25 .A21.0/0.M-UKF

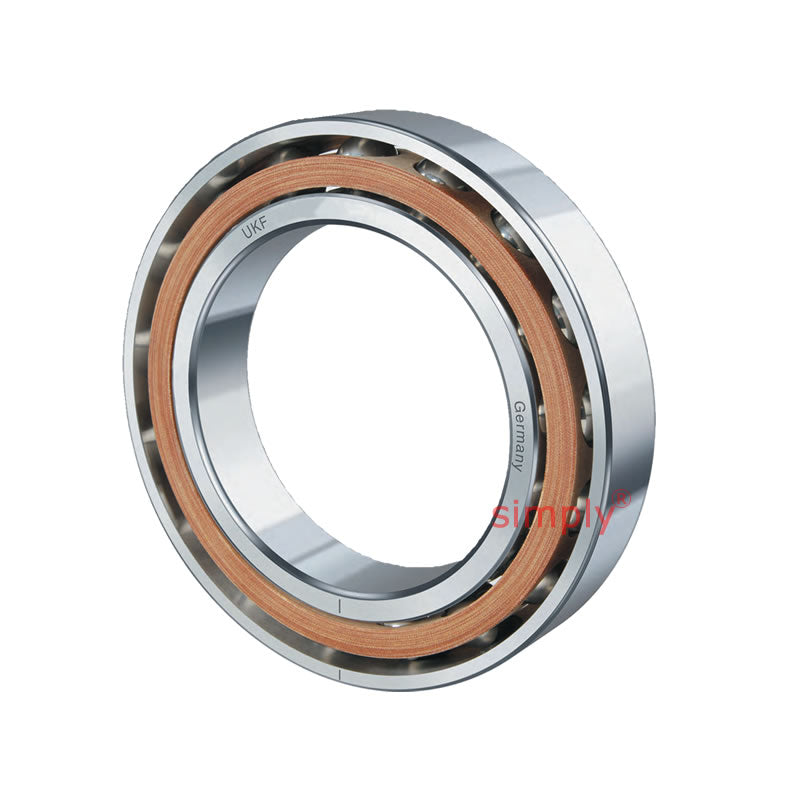

UKF 719USS25A2100M Super Precision Angular Contact Spindle Bearing 25x42x9mm

UKF 719USS25A2100M Super Precision Angular Contact Spindle Bearing 25x42x9mm
$98.62 ex VAT
$98.62 ex VAT
Sale Sold out

Equivalent to: 719USS25 .A21.0/0.M

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
UKF - High Quality
Inside Diameter:
25mm
Outside Diameter:
42mm
Width:
9mm
Seals / Shields:
None
Style:
Single Universal Matchable Bearing
Contact Angle:
21 Degree contact angle
Bearing Preload:
Medium preload
Technical
d 25mm
D 42mm
B 9mm
Dynamic load Co 4900 N
Static load C 7300 N
Speed in Grease 28000 rpm
Speed in Oil 43000 rpm
r<sub>a</sub> 0.15mm
d<sub>a</sub> 28mm
D<sub>a</sub> 39mm
Axial Preload F<sub>v</sub> L 70 N
Axial Preload F<sub>v</sub> M 200 N
Axial Preload F<sub>v</sub> S 400 N
Axial Rigidity R<sub>a</sub> L 49 N/&mu;m
Axial Rigidity R<sub>a</sub> M 69 N/&mu;m
Axial Rigidity R<sub>a</sub> S 87 N/&mu;m
Radial Rigidity R<sub>r</sub> L 195 N/&mu;m
Radial Rigidity R <sub>r</sub> M 280 N/&mu;m
Radial Rigidity <sub>r</sub> S 350 N/&mu;m
Weight 0.04 kg
