• UKF 719USS35A210IM Super Precision Angular Contact Spindle Bearing 35x55x10mm
1 1

SKU: 719USS35 .A21.0/I.M-UKF

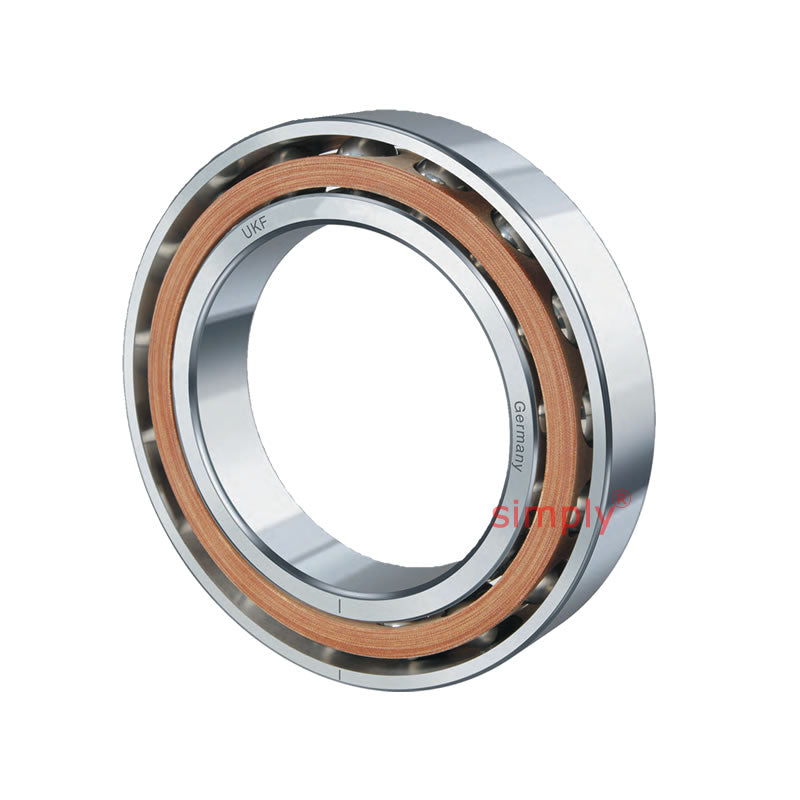

UKF 719USS35A210IM Super Precision Angular Contact Spindle Bearing 35x55x10mm

UKF 719USS35A210IM Super Precision Angular Contact Spindle Bearing 35x55x10mm
$101.43 ex VAT
$101.43 ex VAT
Sale Sold out

Equivalent to: 719USS35 .A21.0/I.M

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
UKF - High Quality
Inside Diameter:
35mm
Outside Diameter:
55mm
Width:
10mm
Seals / Shields:
None
Style:
Single Universal Matchable Bearing
Contact Angle:
21 Degree contact angle
Bearing Preload:
Medium preload
Technical
d 35mm
D 55mm
B 10mm
Dynamic load Co 9400 N
Static load C 12800 N
Speed in Grease 21000 rpm
Speed in Oil 32000 rpm
r<sub>a</sub> 0.3mm
d<sub>a</sub> 39.5mm
D<sub>a</sub> 50.5mm
Axial Preload F<sub>v</sub> L 90 N
Axial Preload F<sub>v</sub> M 260 N
Axial Preload F<sub>v</sub> S 520 N
Axial Rigidity R<sub>a</sub> L 61 N/&mu;m
Axial Rigidity R<sub>a</sub> M 87 N/&mu;m
Axial Rigidity R<sub>a</sub> S 110 N/&mu;m
Radial Rigidity R<sub>r</sub> L 245 N/&mu;m
Radial Rigidity R <sub>r</sub> M 350 N/&mu;m
Radial Rigidity <sub>r</sub> S 445 N/&mu;m
Weight 0.08 kg
