SKU: 719USSC15-UKF

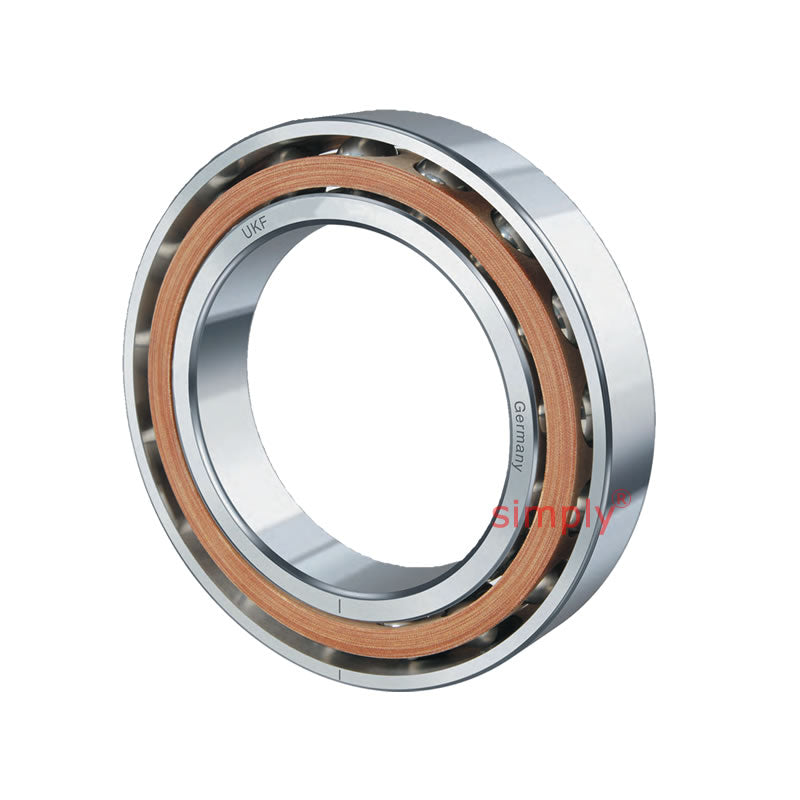

UKF 719USSC15 Super Precision Single Row Angular Contact Spindle Bearing 15x28x7mm
UKF 719USSC15 Super Precision Single Row Angular Contact Spindle Bearing 15x28x7mm
Equivalent to: 719USSC15
Out of stock
Share this product
Description
Description
- Brand / Quality:
- UKF - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 28mm
- Width:
- 7mm
- Seals / Shields:
- None
- Style:
- Single Row Angular Contact Spindle Bearing
- Contact Angle:
- 21 Degree contact angle
Technical
Technical
| d | 15mm |
|---|---|
| D | 28mm |
| B | 7mm |
| Dynamic load Co | 1430 N |
| Static load C | 3220 N |
| Speed in Grease | 61600 rpm |
| Speed in Oil | 93800 rpm |
| r<sub>a</sub> | 0.15mm |
| d<sub>a</sub> | 17.5mm |
| D<sub>a</sub> | 25.5mm |
| Axial Preload F<sub>v</sub> L | 30 N |
| Axial Preload F<sub>v</sub> M | 100 N |
| Axial Preload F<sub>v</sub> S | 200 N |
| Axial Rigidity R<sub>a</sub> L | 33 N/μm |
| Axial Rigidity R<sub>a</sub> M | 49 N/μm |
| Axial Rigidity R<sub>a</sub> S | 62 N/μm |
| Radial Rigidity R<sub>r</sub> L | 132 N/μm |
| Radial Rigidity R <sub>r</sub> M | 201 N/μm |
| Radial Rigidity <sub>r</sub> S | 253 N/μm |
| Weight | 0.01 kg |
