SKU: 719USSC17-UKF

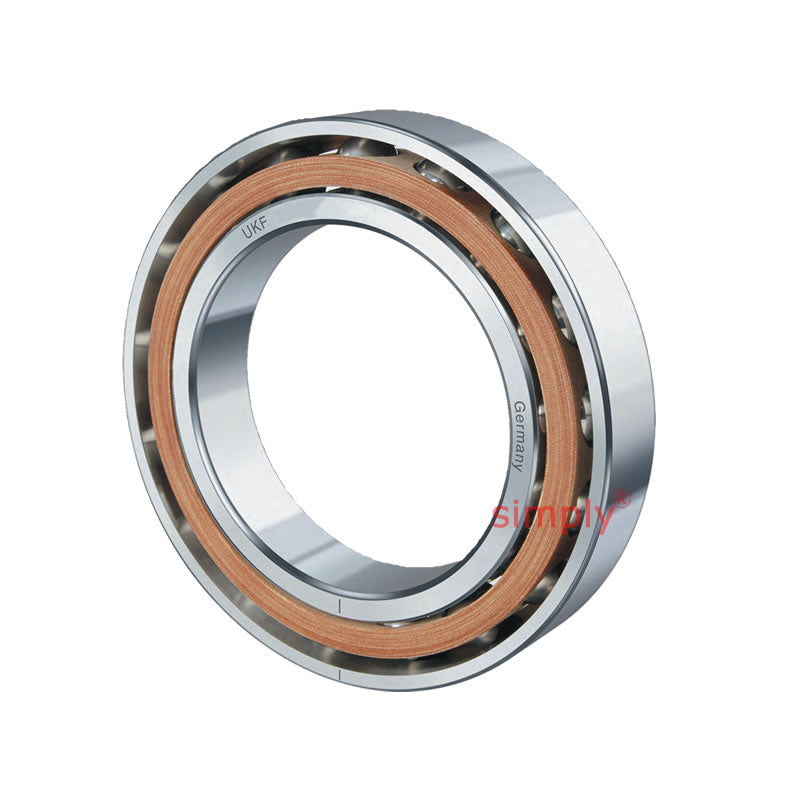

UKF 719USSC17 Super Precision Single Row Angular Contact Spindle Bearing 17x30x7mm
UKF 719USSC17 Super Precision Single Row Angular Contact Spindle Bearing 17x30x7mm
Equivalent to: 719USSC17
Out of stock
Share this product
Description
Description
- Brand / Quality:
- UKF - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 30mm
- Width:
- 7mm
- Seals / Shields:
- None
- Style:
- Single Row Angular Contact Spindle Bearing
- Contact Angle:
- 21 Degree contact angle
Technical
Technical
| d | 17mm |
|---|---|
| D | 30mm |
| B | 7mm |
| Dynamic load Co | 1570 N |
| Static load C | 3360 N |
| Speed in Grease | 56000 rpm |
| Speed in Oil | 86800 rpm |
| r<sub>a</sub> | 0.15mm |
| d<sub>a</sub> | 19.5mm |
| D<sub>a</sub> | 27.5mm |
| Axial Preload F<sub>v</sub> L | 40 N |
| Axial Preload F<sub>v</sub> M | 110 N |
| Axial Preload F<sub>v</sub> S | 220 N |
| Axial Rigidity R<sub>a</sub> L | 39 N/μm |
| Axial Rigidity R<sub>a</sub> M | 58 N/μm |
| Axial Rigidity R<sub>a</sub> S | 69 N/μm |
| Radial Rigidity R<sub>r</sub> L | 155 N/μm |
| Radial Rigidity R <sub>r</sub> M | 219 N/μm |
| Radial Rigidity <sub>r</sub> S | 276 N/μm |
| Weight | 0.02 kg |
