SKU: 719USSC70-UKF

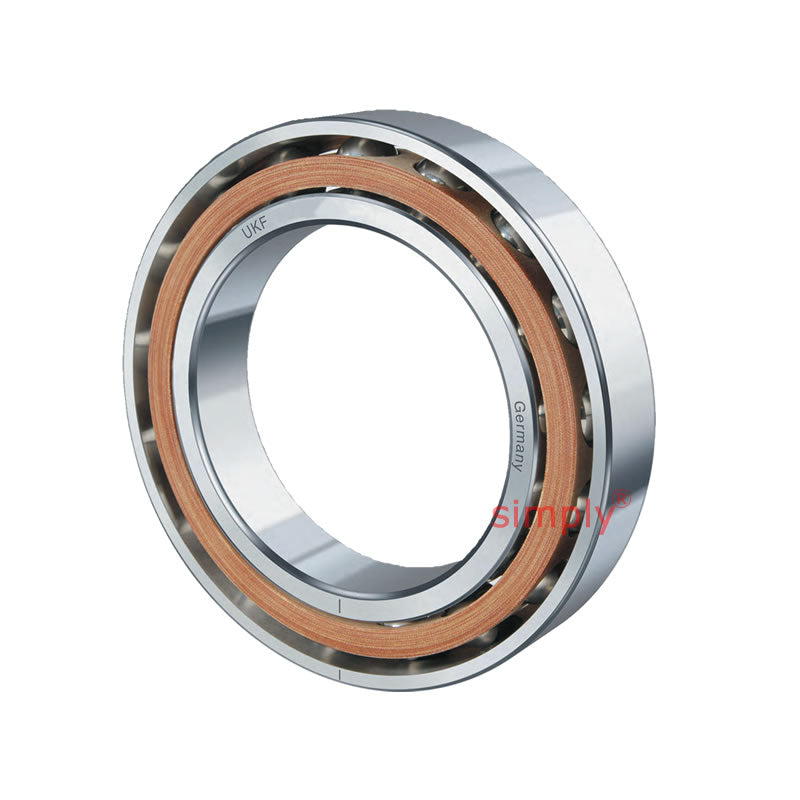

UKF 719USSC70 Super Precision Single Row Angular Contact Spindle Bearing 70x100x16mm
UKF 719USSC70 Super Precision Single Row Angular Contact Spindle Bearing 70x100x16mm
Equivalent to: 719USSC70
Out of stock
Share this product
Description
Description
- Brand / Quality:
- UKF - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 100mm
- Width:
- 16mm
- Seals / Shields:
- None
- Style:
- Single Row Angular Contact Spindle Bearing
- Contact Angle:
- 21 Degree contact angle
Technical
Technical
| d | 70mm |
|---|---|
| D | 100mm |
| B | 16mm |
| Dynamic load Co | 15950 N |
| Static load C | 21280 N |
| Speed in Grease | 15400 rpm |
| Speed in Oil | 23800 rpm |
| r<sub>a</sub> | 0.3mm |
| d<sub>a</sub> | 75.5mm |
| D<sub>a</sub> | 94.5mm |
| Axial Preload F<sub>v</sub> L | 250 N |
| Axial Preload F<sub>v</sub> M | 750 N |
| Axial Preload F<sub>v</sub> S | 1500 N |
| Axial Rigidity R<sub>a</sub> L | 138 N/μm |
| Axial Rigidity R<sub>a</sub> M | 201 N/μm |
| Axial Rigidity R<sub>a</sub> S | 253 N/μm |
| Radial Rigidity R<sub>r</sub> L | 558 N/μm |
| Radial Rigidity R <sub>r</sub> M | 805 N/μm |
| Radial Rigidity <sub>r</sub> S | 1012 N/μm |
| Weight | 0.28 kg |
