SKU: 719USSC85-UKF

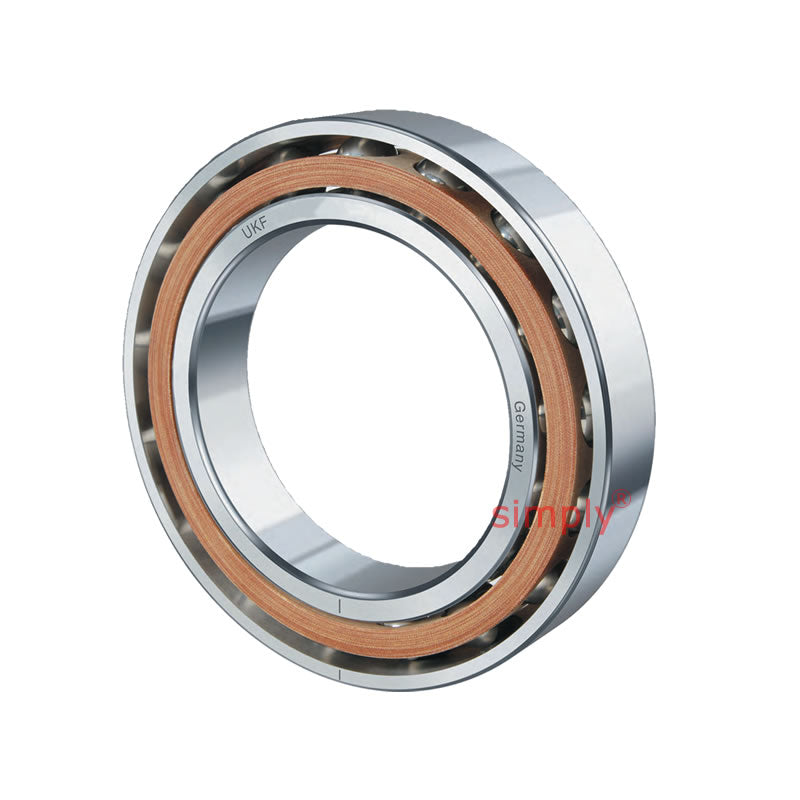

UKF 719USSC85 Super Precision Single Row Angular Contact Spindle Bearing 85x120x18mm

Name: UKF 719USSC85 Super Precision Single Row Angular Contact Spindle Bearing 85x120x18mm
Brand: UKF
SKU: 719USSC85-UKF
Availability: OutOfStock

Equivalent to: 719USSC85

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: UKF - High Quality
Inside Diameter:: 85mm
Outside Diameter:: 120mm
Width:: 18mm
Seals / Shields:: None
Style:: Single Row Angular Contact Spindle Bearing
Contact Angle:: 21 Degree contact angle

Technical

d	85mm
D	120mm
B	18mm
Dynamic load Co	22990 N
Static load C	28700 N
Speed in Grease	12600 rpm
Speed in Oil	19600 rpm
r<sub>a</sub>	0.6mm
d<sub>a</sub>	92.5mm
D<sub>a</sub>	114.5mm
Axial Preload F<sub>v</sub> L	320 N
Axial Preload F<sub>v</sub> M	960 N
Axial Preload F<sub>v</sub> S	1920 N
Axial Rigidity R<sub>a</sub> L	167 N/μm
Axial Rigidity R<sub>a</sub> M	236 N/μm
Axial Rigidity R<sub>a</sub> S	299 N/μm
Radial Rigidity R<sub>r</sub> L	667 N/μm
Radial Rigidity R <sub>r</sub> M	966 N/μm
Radial Rigidity <sub>r</sub> S	1208 N/μm
Weight	0.45 kg
