SKU: 7201BECBP-SKF

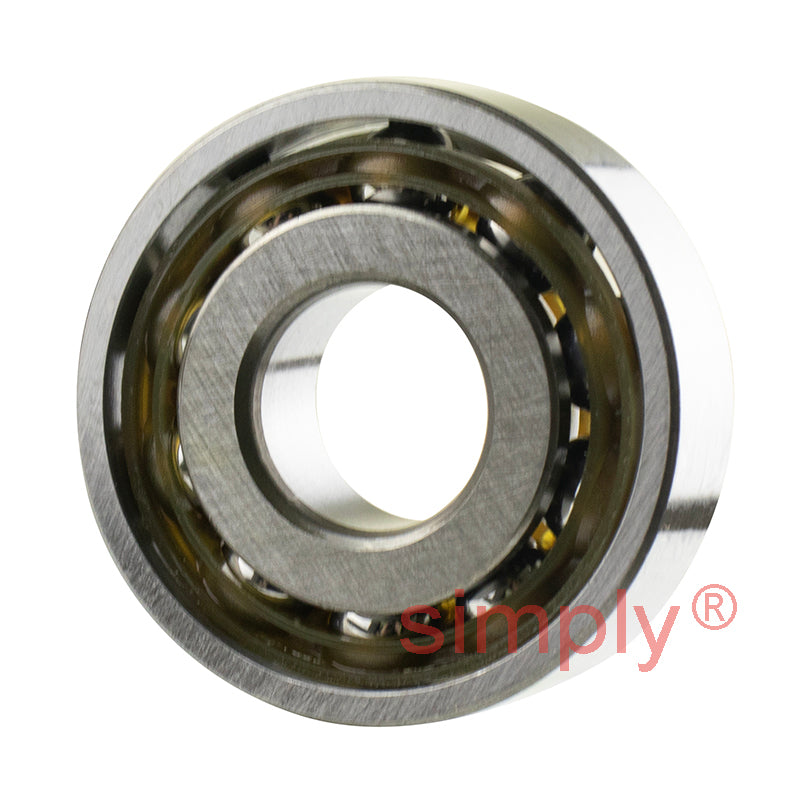

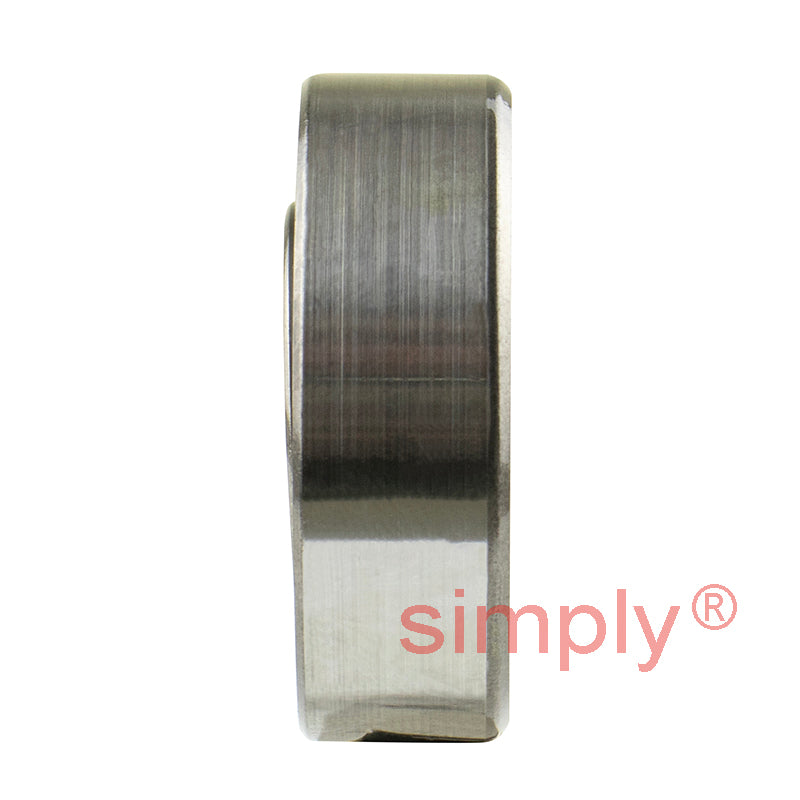

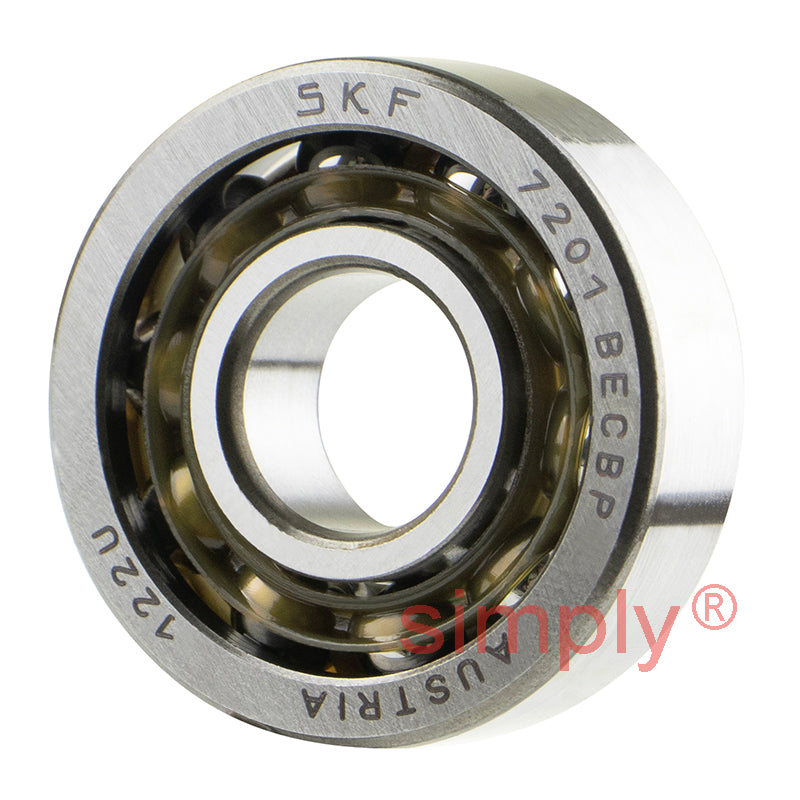

SKF 7201BECBP Single Row Angular Contact Ball Bearing 12x32x10mm
SKF 7201BECBP Single Row Angular Contact Ball Bearing 12x32x10mm
Regular price
$46.84
ex VAT
Regular price
Sale price
$46.84
ex VAT
Equivalent to: 7201BECBP
In stock
Price Break
4+
$31.37
8+
$29.61
12+
$29.25
16+
$28.90
25+
$28.55
50+
$28.20
99+
$26.44
199+
$26.08
249+
$25.73
499+
$25.38
999+
$24.67
Quantity
Couldn't load pickup availability
Share this product
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 32mm
- Width:
- 10mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 12mm |
|---|---|
| D | 32mm |
| B | 10mm |
| Dynamic load Cr | 7.61 kN |
| Static load Cor | 3.8 kN |
| Fatigue load limit Pu | 0.16 kN |
| Reference speed | 26000 rpm |
| Limit speed | 26000 rpm |
| Weight | 0.036 kg |
| d1 | 20.2mm |
| d2 | 16.6mm |
| D1 | 25mm |
| r1r2 min | 0.6mm |
| r3r4 min | 0.3mm |
| a | 14.4mm |
| da min | 16.2mm |
| Da max | 27.8mm |
| Db max | 29.6mm |
| ra max | 0.6mm |
| rb max | 0.3mm |
