SKU: 7202BEP-SKF

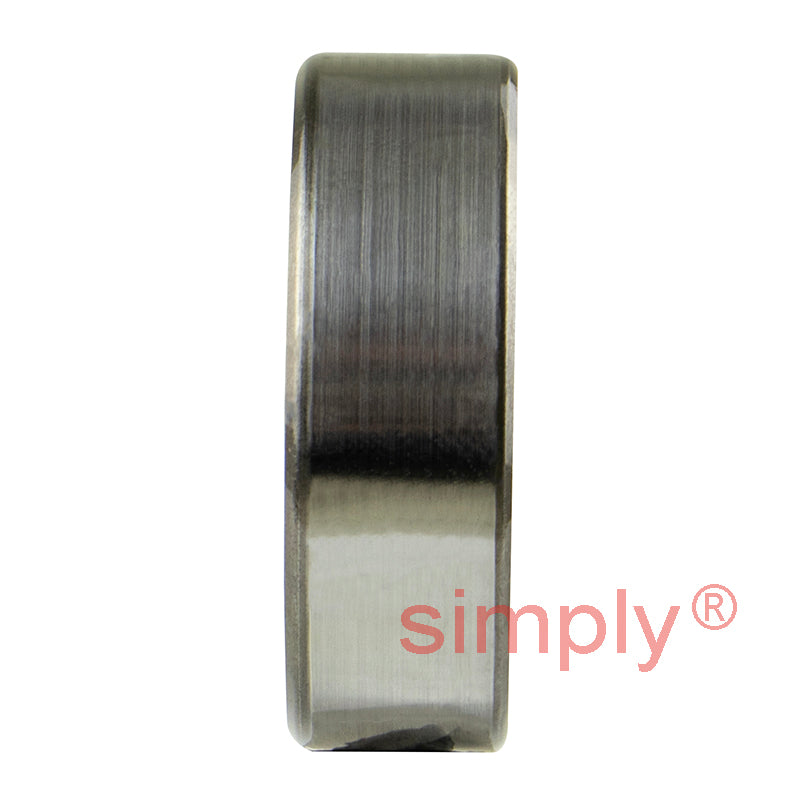

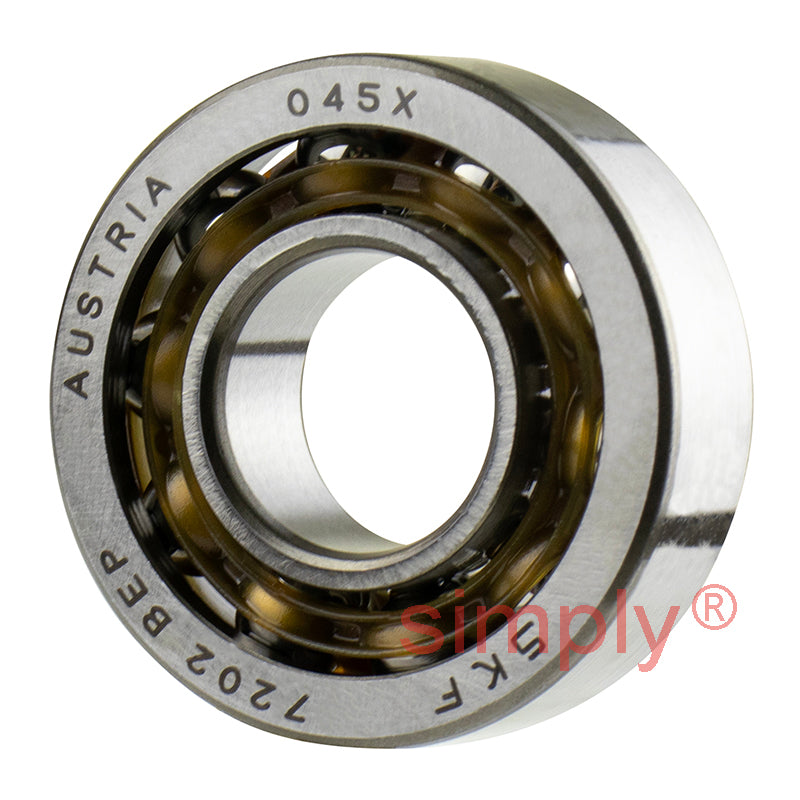

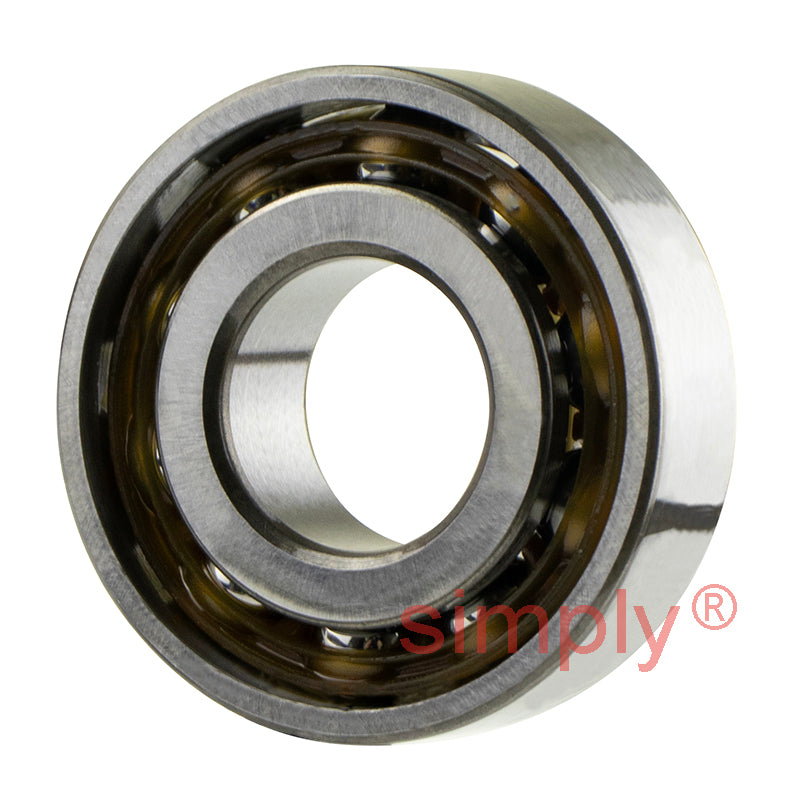

SKF 7202BEP Single Row Angular Contact Ball Bearing 15x35x11mm
SKF 7202BEP Single Row Angular Contact Ball Bearing 15x35x11mm
Regular price
$25.54
ex VAT
Regular price
Sale price
$25.54
ex VAT
Equivalent to: 7202BEP
In stock
Price Break
4+
$17.11
8+
$16.15
12+
$15.95
16+
$15.76
25+
$15.57
50+
$15.38
99+
$14.42
199+
$14.22
249+
$14.03
499+
$13.84
999+
$13.45
Quantity
Couldn't load pickup availability
Share this product
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 35mm
- Width:
- 11mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 15mm |
|---|---|
| D | 35mm |
| B | 11mm |
| Dynamic load Cr | 8.84 kN |
| Static load Cor | 4.8 kN |
| Fatigue load limit Pu | 0.204 kN |
| Reference speed | 24000 rpm |
| Limit speed | 24000 rpm |
| Weight | 0.045 kg |
| d1 | 22.7mm |
| d2 | 19mm |
| D1 | 27.8mm |
| r1r2 min | 0.6mm |
| r3r4 min | 0.3mm |
| a | 16mm |
| da min | 19.2mm |
| Da max | 30.8mm |
| Db max | 32.6mm |
| ra max | 0.6mm |
| rb max | 0.3mm |
