SKU: 7208BEP-SKF

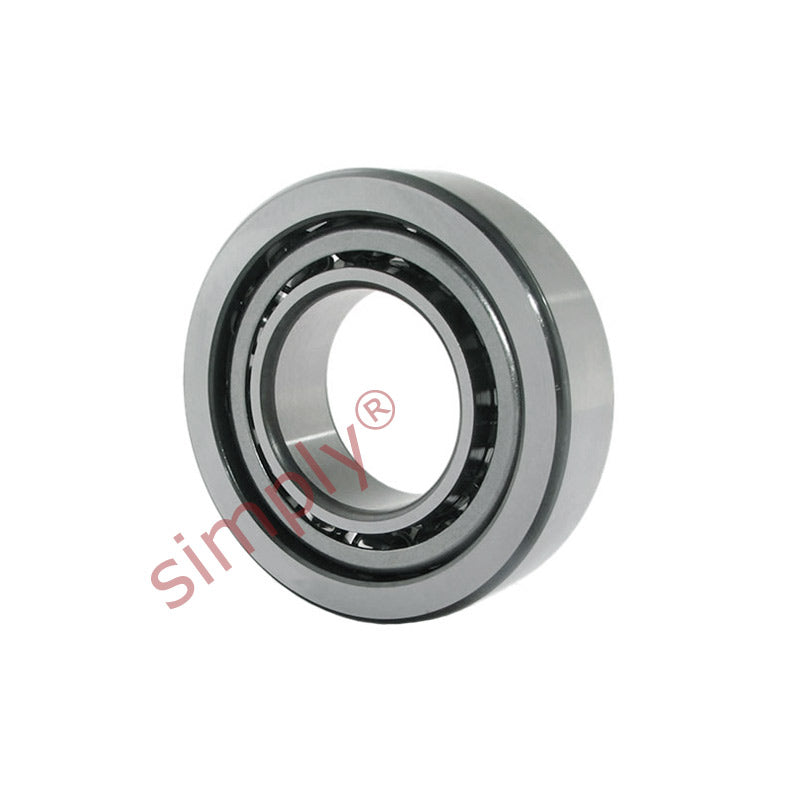

SKF 7208BEP Single Row Angular Contact Ball Bearing 40x80x18mm
SKF 7208BEP Single Row Angular Contact Ball Bearing 40x80x18mm
Regular price
$66.49
ex VAT
Regular price
Sale price
$66.49
ex VAT
Equivalent to: 7208BEP
In stock
Price Break
4+
$44.54
8+
$42.03
12+
$41.53
16+
$41.03
25+
$40.53
50+
$40.03
99+
$37.53
199+
$37.03
249+
$36.53
499+
$36.03
999+
$35.03
Quantity
Couldn't load pickup availability
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Width:
- 18mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 40mm |
|---|---|
| D | 80mm |
| B | 18mm |
| Dynamic load Cr | 34.5 kN |
| Static load Cor | 24 kN |
| Fatigue load limit Pu | 1.02 kN |
| Reference speed | 10000 rpm |
| Limit speed | 10000 rpm |
| Weight | 0.37 kg |
| d1 | 56.3mm |
| d2 | 48.1mm |
| D1 | 65.6mm |
| r1r2 min | 1.1mm |
| r3r4 min | 0.6mm |
| a | 34mm |
| da min | 47mm |
| Da max | 73mm |
| Db max | 75.8mm |
| ra max | 1mm |
| rb max | 0.6mm |
