• RHP 7211CSN24TRSULP3 Super Precision Angular Contact Spindle Bearing 60x85x13mm
1 1

SKU: 7211CSN24TRSULP3-RHP

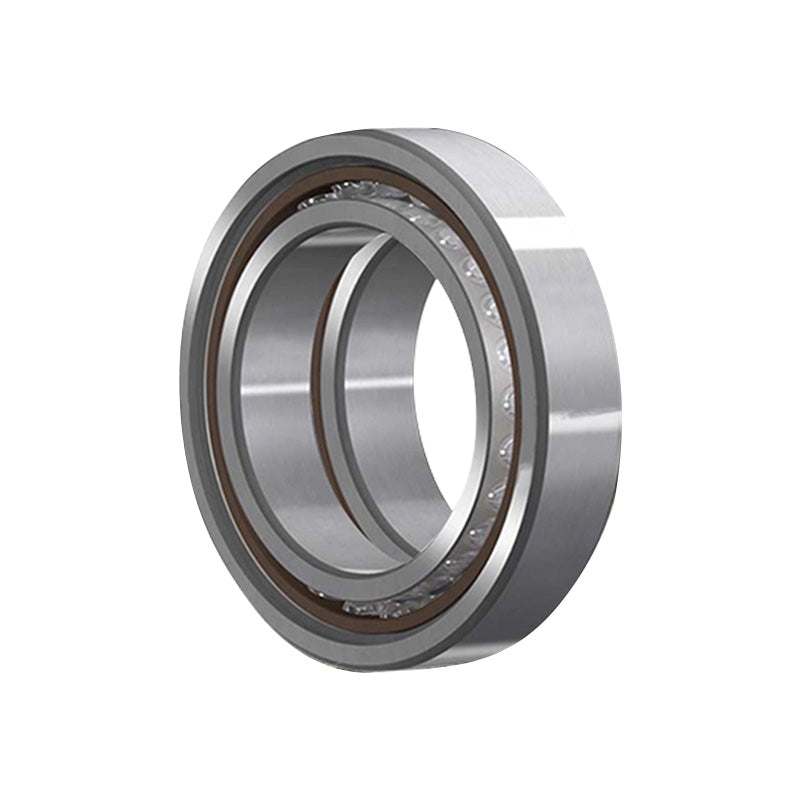

RHP 7211CSN24TRSULP3 Super Precision Angular Contact Spindle Bearing 60x85x13mm

RHP 7211CSN24TRSULP3 Super Precision Angular Contact Spindle Bearing 60x85x13mm
$763.03 ex VAT
$763.03 ex VAT
Sale Sold out

In stock

Price Break
3+ $511.10
5+ $482.39
10+ $476.64
25+ $470.90
49+ $465.16
74+ $459.42
99+ $430.70
199+ $424.96
249+ $419.22
499+ $413.47
999+ $401.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
60mm
Outside Diameter:
85mm
Width:
13mm
Seals / Shields:
None
Style:
Single Universal Matchable Bearing
Contact Angle:
15 Degree contact angle
Bearing Preload:
Light preload
Technical
--- Bearing dimensions
d 60mm
D 85mm
B 13mm
r<sub>min</sub> 1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> -20.4Kn
C<sub>or</sub> -18.7kN
Axial load Kn 13.6 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 16.5
Effective diameter 16.2mm
Max speed in grease 20700 rpm
Max speed in oil 31500 rpm
--- Fitting dimensions
d<sub>a min</sub> 66mm
D<sub>a max</sub> 79mm
D<sub>b max</sub> 80mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.5mm
Weight 0.175kg
