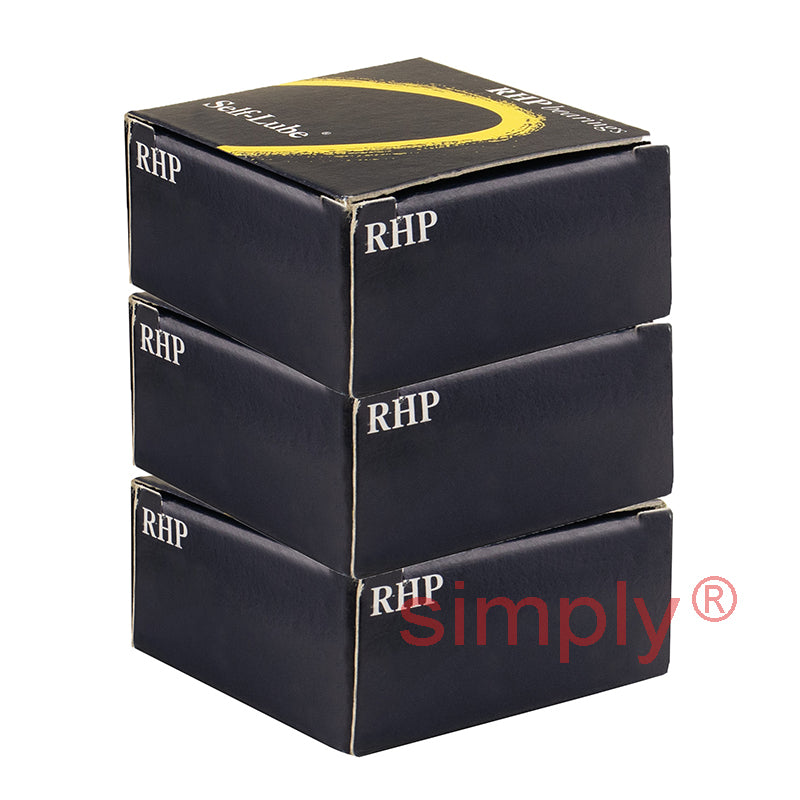

• RHP 7214A5TRDUDLP4 Super Precision Angular Contact Spindle Bearing 70x125x24mm (Set of 3)
1 1

SKU: 7214A5TRDUDLP4-RHP

RHP 7214A5TRDUDLP4 Super Precision Angular Contact Spindle Bearing 70x125x24mm (Set of 3)

RHP 7214A5TRDUDLP4 Super Precision Angular Contact Spindle Bearing 70x125x24mm (Set of 3)
$1,328.83 ex VAT
$1,328.83 ex VAT
Sale Sold out

In stock

Price Break
3+ $890.09
5+ $840.08
10+ $830.08
25+ $820.08
49+ $810.08
74+ $800.08
99+ $750.07
199+ $740.07
249+ $730.07
499+ $720.07
999+ $700.07

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
70mm
Outside Diameter:
125mm
Width:
24mm
Seals / Shields:
None
Style:
Universal Matched Triple Bearing Set
Contact Angle:
25 Degree contact angle
Bearing Preload:
Light preload
Technical
--- Bearing dimensions
d 70mm
D 125mm
B 24mm
r<sub>min</sub> 1.5mm
r1<sub>min</sub> 1mm
--- Loads angles and speeds
C<sub>r</sub> 79.5Kn
C<sub>or</sub> 61.5kN
Axial load Kn 49.5 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 34.7mm
Max speed in grease 10300 rpm
Max speed in oil 15400 rpm
--- Fitting dimensions
d<sub>a min</sub> 79mm
D<sub>a max</sub> 116mm
D<sub>b max</sub> 119mm
r<sub>a max</sub> 1.5mm
r<sub>b max</sub> 0.8mm
Weight 3.24kg
