SKU: 7215BECBM-SKF

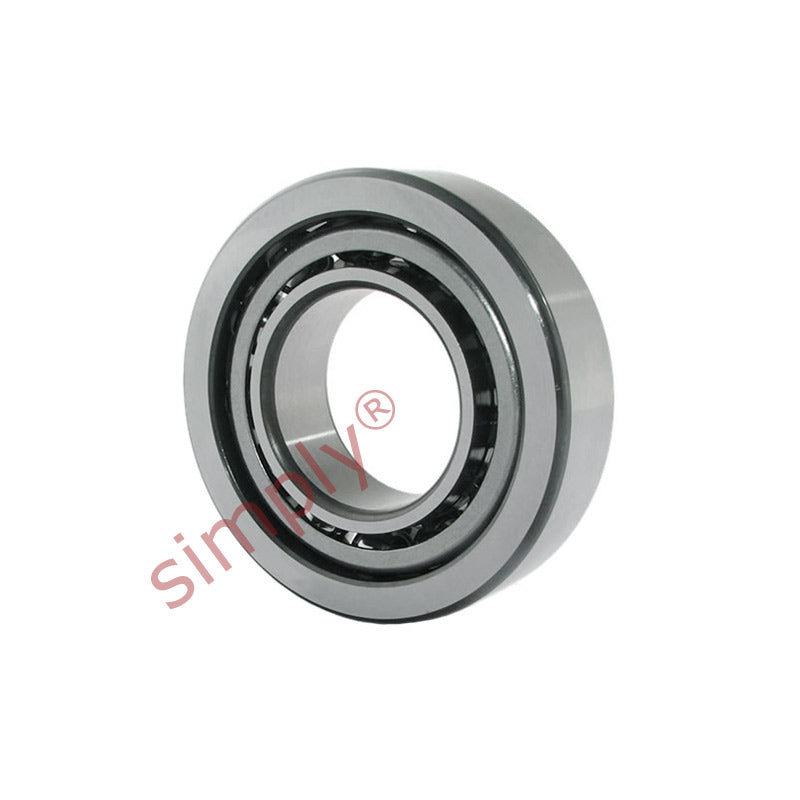

SKF 7215BECBM Single Row Angular Contact Ball Bearing 75x130x25mm
SKF 7215BECBM Single Row Angular Contact Ball Bearing 75x130x25mm
Regular price
$293.27
ex VAT
Regular price
Sale price
$293.27
ex VAT
Equivalent to: 7215BECBM
In stock
Price Break
4+
$196.44
8+
$185.40
12+
$183.19
16+
$180.99
25+
$178.78
50+
$176.57
99+
$165.54
199+
$163.33
249+
$161.12
499+
$158.92
999+
$154.50
Quantity
Couldn't load pickup availability
Share this product
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 130mm
- Width:
- 25mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 75mm |
|---|---|
| D | 130mm |
| B | 25mm |
| Dynamic load Cr | 70.2 kN |
| Static load Cor | 60 kN |
| Fatigue load limit Pu | 2.5 kN |
| Reference speed | 5600 rpm |
| Limit speed | 6000 rpm |
| Weight | 1.29 kg |
| d1 | 96.3mm |
| d2 | 85.3mm |
| D1 | 110.1mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1mm |
| a | 56mm |
| da min | 84mm |
| Da max | 121mm |
| Db max | 124mm |
| ra max | 1.5mm |
| rb max | 1mm |
