SKU: 7215BEP-SKF

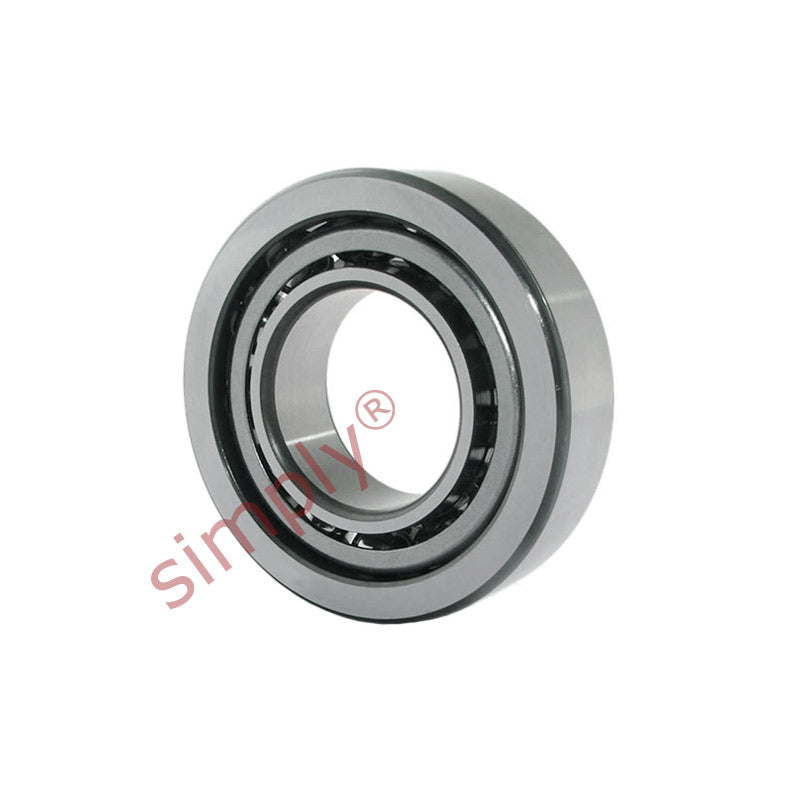

SKF 7215BEP Single Row Angular Contact Ball Bearing 75x130x25mm
SKF 7215BEP Single Row Angular Contact Ball Bearing 75x130x25mm
Regular price
$149.52
ex VAT
Regular price
Sale price
$149.52
ex VAT
Equivalent to: 7215BEP
In stock
Price Break
4+
$100.15
8+
$94.53
12+
$93.40
16+
$92.28
25+
$91.15
50+
$90.03
99+
$84.40
199+
$83.27
249+
$82.15
499+
$81.02
999+
$78.77
Quantity
Couldn't load pickup availability
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 130mm
- Width:
- 25mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 75mm |
|---|---|
| D | 130mm |
| B | 25mm |
| Dynamic load Cr | 72.8 kN |
| Static load Cor | 64 kN |
| Fatigue load limit Pu | 2.65 kN |
| Reference speed | 5600 rpm |
| Limit speed | 5600 rpm |
| Weight | 1.18 kg |
| d1 | 96.3mm |
| d2 | 85.3mm |
| D1 | 110.1mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1mm |
| a | 56mm |
| da min | 84mm |
| Da max | 121mm |
| Db max | 124mm |
| ra max | 1.5mm |
| rb max | 1mm |
