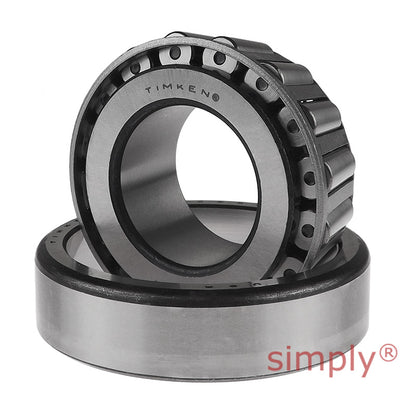

• Timken 72187C/72487 TS Single-Row Taper Roller Bearing 1.875x4.875x1.4375 inch
  • Timken
1 2

SKU: 72187C/72487-TIM

Timken 72187C/72487 TS Single-Row Taper Roller Bearing 1.875x4.875x1.4375 inch

Timken 72187C/72487 TS Single-Row Taper Roller Bearing 1.875x4.875x1.4375 inch
$232.39 ex VAT
$232.39 ex VAT
Sale Sold out

In stock

Price Break
10+ $155.66
20+ $146.92
30+ $145.17
40+ $143.42
50+ $141.67
75+ $139.92
100+ $131.18
200+ $129.43
250+ $127.68
500+ $125.93
1000+ $122.43

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Timken - High Quality
Inside Diameter:
47.63mm = 1.875 (1-7/8) inch
Outside Diameter:
123.83mm = 4.875 (4-7/8) inch
Width:
36.51mm = 1.437 (1-7/16) inch
Technical
d 47.625mm = 1.875 inch
D 123.825mm = 4.875 inch
T 36.512mm = 1.4375 inch
Dynamic (1) C1 167000N
Factors (5) e 0.74
Factors (5) Y 0.81
Dynamic (2) C90 43400N
Dynamic (2) Ca90 54800N
Factors (5) K 0.79
Static C0 208000N
Bearing B 32.791mm = 1.291 inch
Bearing C 25.4mm = 1 inch
Bearing a(3) 2mm = 0.08 inch
Shaft max shaft fillet radius R(4) 3.5mm = 0.14 inch
Shaft backing shoulder diameter da 66mm = 2.6 inch
Shaft backing shoulder diameter db 75mm = 2.95 inch
Housing backing shoulder diameter r(4) 3.3mm = 0.13 inch
Housing backing shoulder diameter Da 116mm = 4.57 inch
Housing backing shoulder diameter Db 102mm = 4.02 inch
Cage Aa 4.7mm = 0.19 inch
Cage Ab 4.4mm = 0.17 inch
G1 57.4
G2 13.5
Cg 0.0825
