SKU: 7228BM-SKF
SKF 7228BM Single Row Angular Contact Ball Bearing 140x250x42mm
SKF 7228BM Single Row Angular Contact Ball Bearing 140x250x42mm
Regular price
$1,341.60
ex VAT
Regular price
Sale price
$1,341.60
ex VAT
Equivalent to: 7228BM
In stock
Price Break
4+
$898.64
8+
$848.15
12+
$838.06
16+
$827.96
25+
$817.86
50+
$807.77
99+
$757.28
199+
$747.18
249+
$737.09
499+
$726.99
999+
$706.80
Quantity
Couldn't load pickup availability
Share this product
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 140mm
- Outside Diameter:
- 250mm
- Width:
- 42mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical

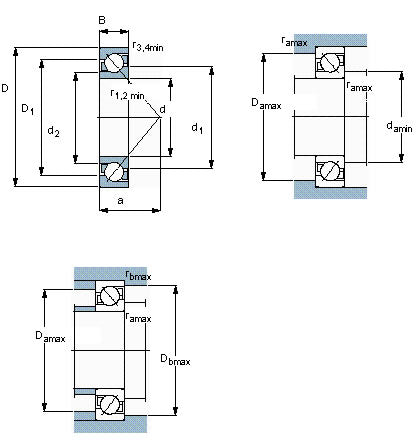

| d | 140mm |
|---|---|
| D | 250mm |
| B | 42mm |
| Dynamic load Cr | 199 kN |
| Static load Cor | 212 kN |
| Fatigue load limit Pu | 6.4 kN |
| Reference speed | 2800 rpm |
| Limit speed | 3000 rpm |
| Weight | 8.63 kg |
| d1 | 183.3mm |
| d2 | 163.6mm |
| D1 | 209.5mm |
| r1r2 min | 3mm |
| r3r4 min | 1.1mm |
| a | 103mm |
| da min | 154mm |
| Da max | 236mm |
| Db max | 243mm |
| ra max | 2.5mm |
| rb max | 1mm |
