SKU: 7236BCBM-SKF

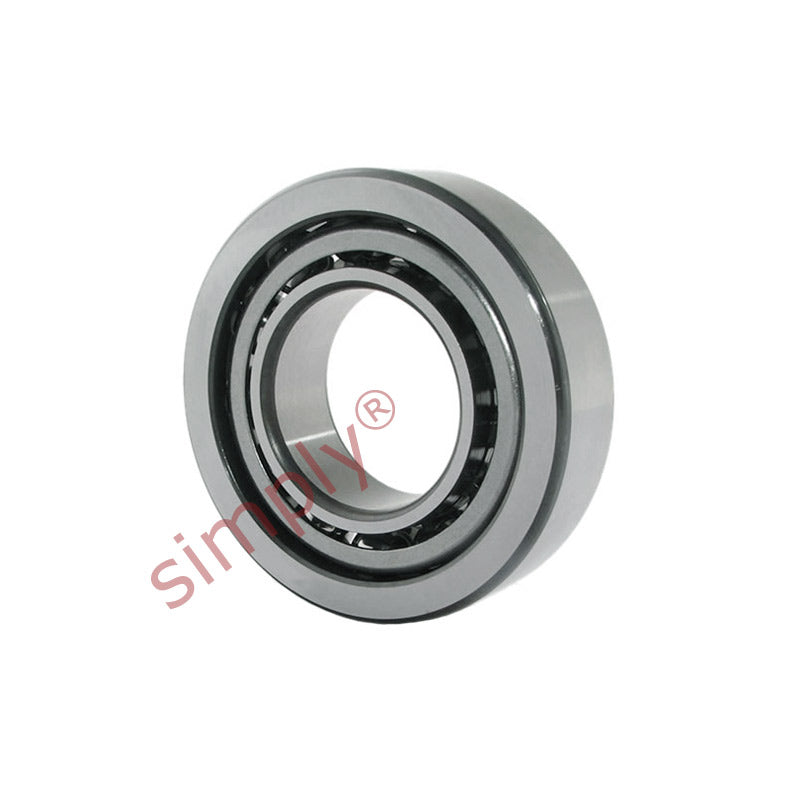

SKF 7236BCBM Single Row Angular Contact Ball Bearing 180x320x52mm
SKF 7236BCBM Single Row Angular Contact Ball Bearing 180x320x52mm
Regular price
$2,501.76
ex VAT
Regular price
Sale price
$2,501.76
ex VAT
Equivalent to: 7236BCBM
In stock
Price Break
4+
$1,675.76
8+
$1,581.61
12+
$1,562.78
16+
$1,543.96
25+
$1,525.13
50+
$1,506.30
99+
$1,412.16
199+
$1,393.33
249+
$1,374.50
499+
$1,355.67
999+
$1,318.01
Quantity
Couldn't load pickup availability
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 180mm
- Outside Diameter:
- 320mm
- Width:
- 52mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 180mm |
|---|---|
| D | 320mm |
| B | 52mm |
| Dynamic load Cr | 291 kN |
| Static load Cor | 375 kN |
| Fatigue load limit Pu | 10 kN |
| Reference speed | 2200 rpm |
| Limit speed | 2400 rpm |
| Weight | 17.6 kg |
| d1 | 234.9mm |
| d2 | 209.6mm |
| D1 | 268.8mm |
| r1r2 min | 4mm |
| r3r4 min | 1.5mm |
| a | 131mm |
| da min | 197mm |
| Da max | 303mm |
| Db max | 311mm |
| ra max | 3mm |
| rb max | 1.5mm |
