SKU: 7301BEP-SKF

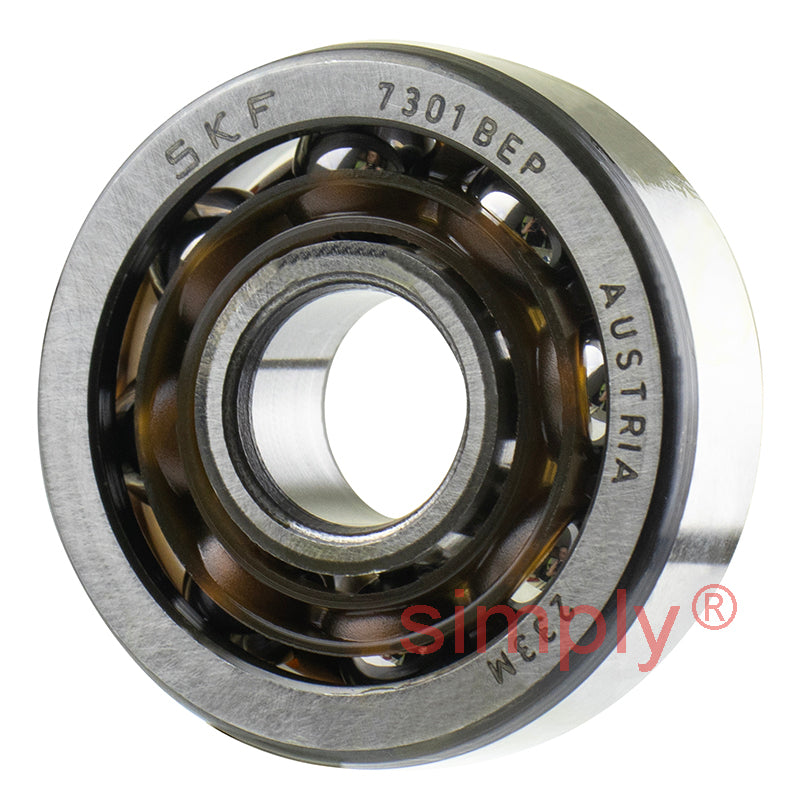

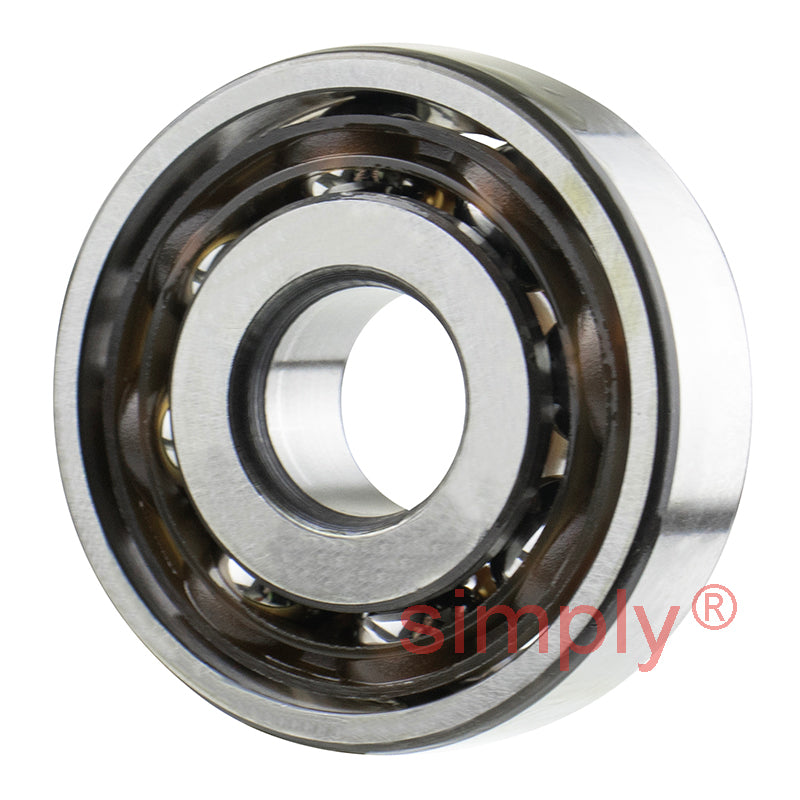

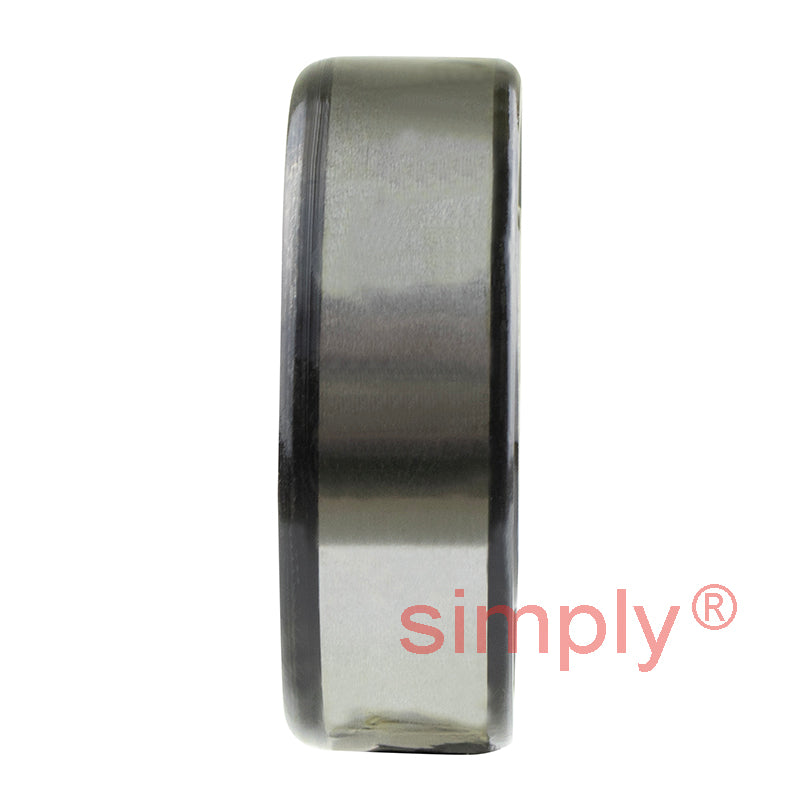

SKF 7301BEP Single Row Angular Contact Ball Bearing 12x37x12mm
SKF 7301BEP Single Row Angular Contact Ball Bearing 12x37x12mm
Regular price
$65.66
ex VAT
Regular price
Sale price
$65.66
ex VAT
Equivalent to: 7301BEP
In stock
Price Break
4+
$43.99
8+
$41.52
12+
$41.02
16+
$40.53
25+
$40.03
50+
$39.54
99+
$37.07
199+
$36.57
249+
$36.08
499+
$35.59
999+
$34.60
Quantity
Couldn't load pickup availability
Share this product
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 37mm
- Width:
- 12mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 12mm |
|---|---|
| D | 37mm |
| B | 12mm |
| Dynamic load Cr | 10.6 kN |
| Static load Cor | 5 kN |
| Fatigue load limit Pu | 0.208 kN |
| Reference speed | 24000 rpm |
| Limit speed | 24000 rpm |
| Weight | 0.063 kg |
| d1 | 21.8mm |
| d2 | 17mm |
| D1 | 28.3mm |
| r1r2 min | 1mm |
| r3r4 min | 0.6mm |
| a | 16.3mm |
| da min | 17.6mm |
| Da max | 31.4mm |
| Db max | 32.8mm |
| ra max | 1mm |
| rb max | 0.6mm |
