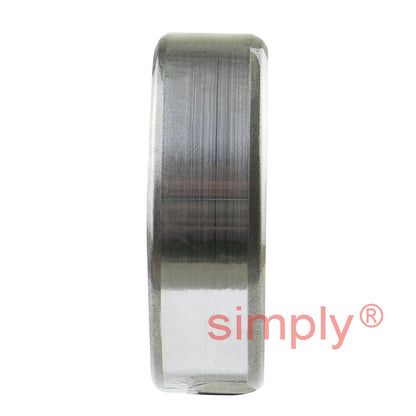

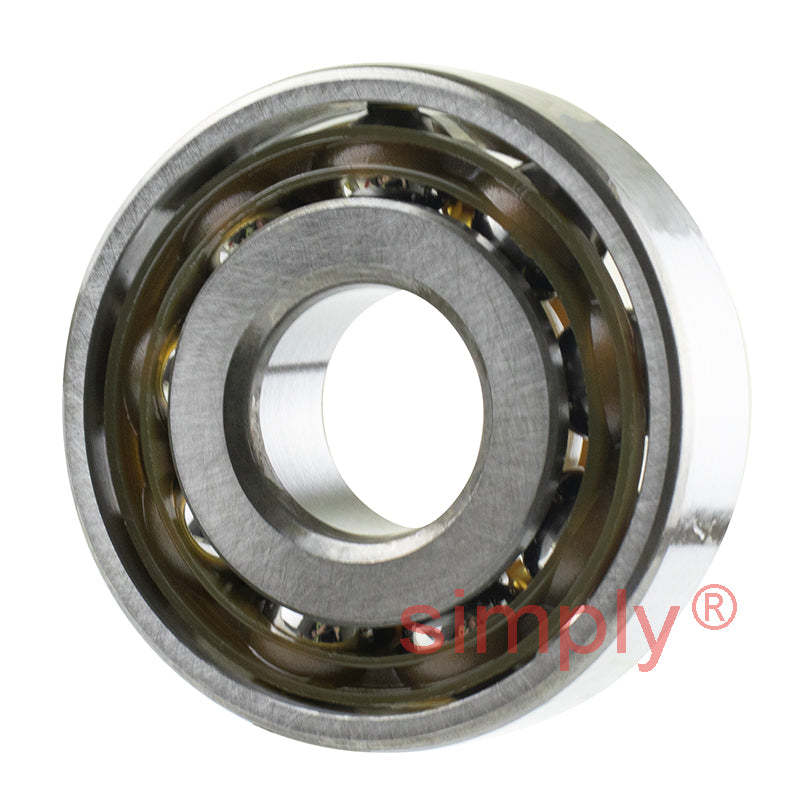

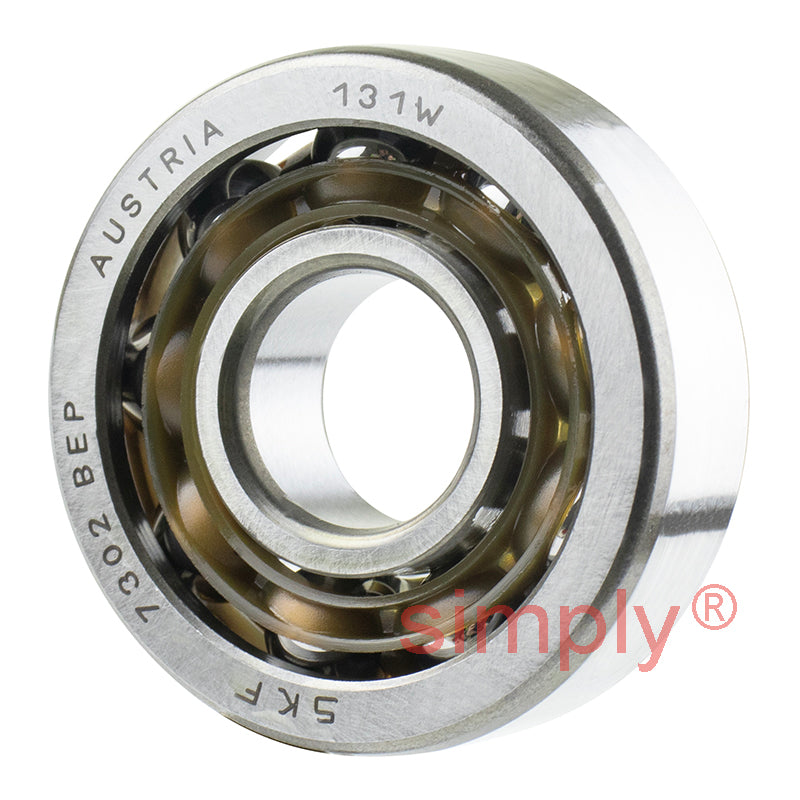

SKF 7302BEP Single Row Angular Contact Ball Bearing 15x42x13mm
SKF 7302BEP Single Row Angular Contact Ball Bearing 15x42x13mm
Regular price
$29.99
ex VAT
Regular price
Sale price
$29.99
ex VAT
Equivalent to: 7302BEP
In stock
Price Break
4+
$20.09
8+
$18.96
12+
$18.73
16+
$18.51
25+
$18.28
50+
$18.06
99+
$16.93
199+
$16.70
249+
$16.48
499+
$16.25
999+
$15.80
Quantity
Couldn't load pickup availability
Share this product
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 42mm
- Width:
- 13mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 15mm |
|---|---|
| D | 42mm |
| B | 13mm |
| Dynamic load Cr | 13 kN |
| Static load Cor | 6.7 kN |
| Fatigue load limit Pu | 0.28 kN |
| Reference speed | 20000 rpm |
| Limit speed | 20000 rpm |
| Weight | 0.081 kg |
| d1 | 26mm |
| d2 | 20.7mm |
| D1 | 32.6mm |
| r1r2 min | 1mm |
| r3r4 min | 0.6mm |
| a | 18.6mm |
| da min | 20.6mm |
| Da max | 36.4mm |
| Db max | 37.8mm |
| ra max | 1mm |
| rb max | 0.6mm |
