SKU: 7308-B-TVP-UO

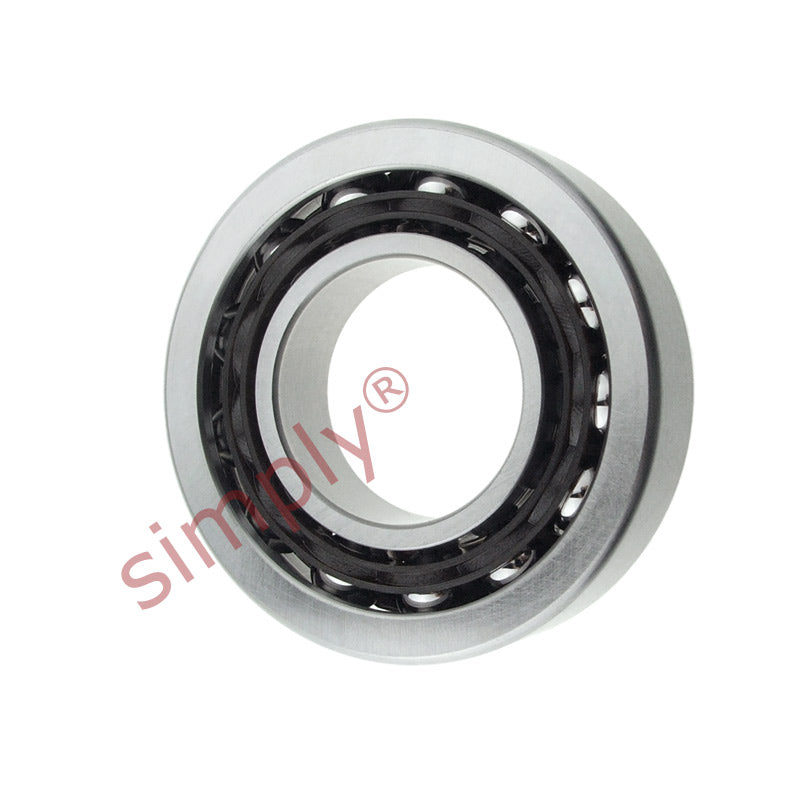

Major Brand 7308BTVPUO Open Single Row Angular Contact Ball Bearing 40x90x23mm
- Regular price
- $78.10 ex VAT
- Sale price
- $78.10
- Regular price
-
In stock
Quantity Price Breaks
10
$69.51
20
$65.60
30
$64.82
40
$64.04
50
$63.26
75
$62.48
100
$58.58
200
$57.79
250
$57.01
500
$56.23
1000
$54.67
SKU:
7308-B-TVP-UO
Major Brand 7308BTVPUO Open Single Row Angular Contact Ball Bearing 40x90x23mm
- Regular price
- $78.10 ex VAT
- Sale price
- $78.10
- Regular price
-
Description
Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Technical
| d | = | 40mm |
| D | = | 90mm |
| B | = | 23mm |
| r1r2 min | = | 1.5mm |
| r3r4 min | = | 1mm |
| Dynamic Load | = | 46.2 kN |
| Static Load | = | 30.5 kN |
| Weight | = | 0.61kg |
