SKU: 7309BEGAP-SKF

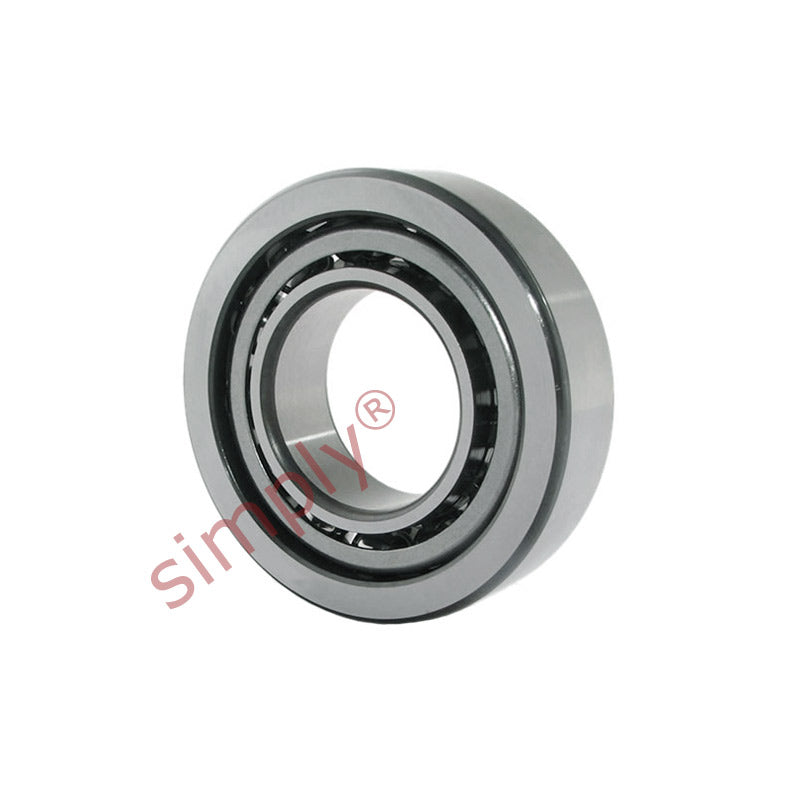

SKF 7309BEGAP Single Row Angular Contact Ball Bearing 45x100x25mm
SKF 7309BEGAP Single Row Angular Contact Ball Bearing 45x100x25mm
Regular price
$113.84
ex VAT
Regular price
Sale price
$113.84
ex VAT
Equivalent to: 7309BEGAP
In stock
Price Break
4+
$76.26
8+
$71.98
12+
$71.12
16+
$70.26
25+
$69.40
50+
$68.55
99+
$64.26
199+
$63.41
249+
$62.55
499+
$61.69
999+
$59.98
Quantity
Couldn't load pickup availability
Share this product
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 25mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 45mm |
|---|---|
| D | 100mm |
| B | 25mm |
| Dynamic load Cr | 61 kN |
| Static load Cor | 40.5 kN |
| Fatigue load limit Pu | 1.73 kN |
| Reference speed | 9000 rpm |
| Limit speed | 9000 rpm |
| Weight | 0.82 kg |
| d1 | 66.5mm |
| d2 | 55.25mm |
| D1 | 79.9mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1mm |
| a | 43mm |
| da min | 54mm |
| Da max | 91mm |
| Db max | 94.4mm |
| ra max | 1.5mm |
| rb max | 1mm |
