SKU: 7311BECBM-SKF

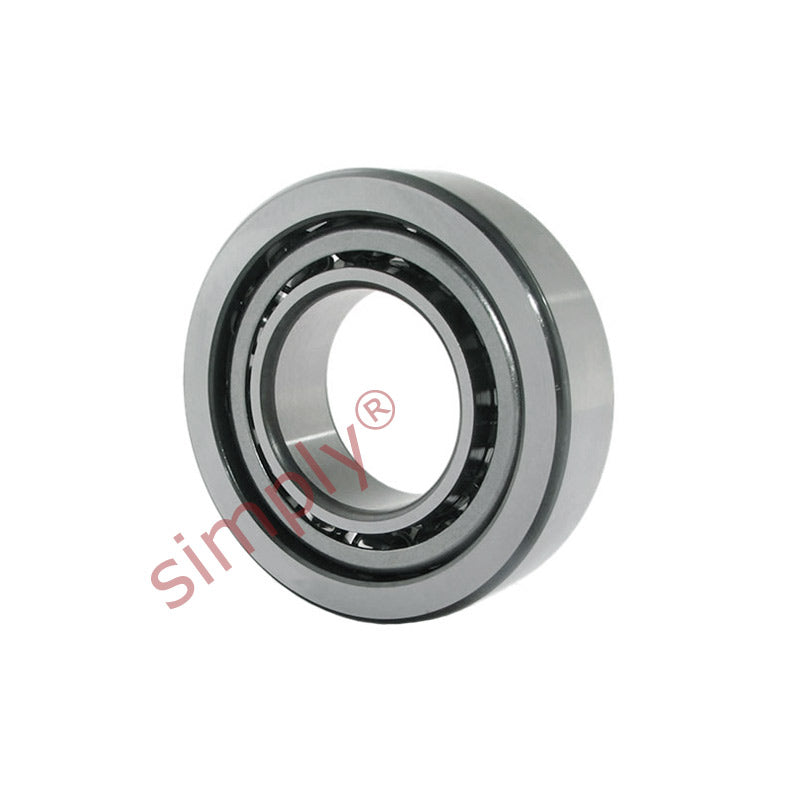

SKF 7311BECBM Single Row Angular Contact Ball Bearing 55x120x29mm
SKF 7311BECBM Single Row Angular Contact Ball Bearing 55x120x29mm
Regular price
$310.58
ex VAT
Regular price
Sale price
$310.58
ex VAT
Equivalent to: 7311BECBM
In stock
Price Break
4+
$208.04
8+
$196.35
12+
$194.01
16+
$191.68
25+
$189.34
50+
$187.00
99+
$175.31
199+
$172.98
249+
$170.64
499+
$168.30
999+
$163.63
Quantity
Couldn't load pickup availability
Share this product
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 120mm
- Width:
- 29mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 55mm |
|---|---|
| D | 120mm |
| B | 29mm |
| Dynamic load Cr | 85 kN |
| Static load Cor | 60 kN |
| Fatigue load limit Pu | 2.55 kN |
| Reference speed | 7000 rpm |
| Limit speed | 7000 rpm |
| Weight | 1.49 kg |
| d1 | 80.3mm |
| d2 | 66.7mm |
| D1 | 96.6mm |
| r1r2 min | 2mm |
| r3r4 min | 1mm |
| a | 51mm |
| da min | 66mm |
| Da max | 109mm |
| Db max | 114mm |
| ra max | 2mm |
| rb max | 1mm |
