SKU: 7312BECBM-SKF

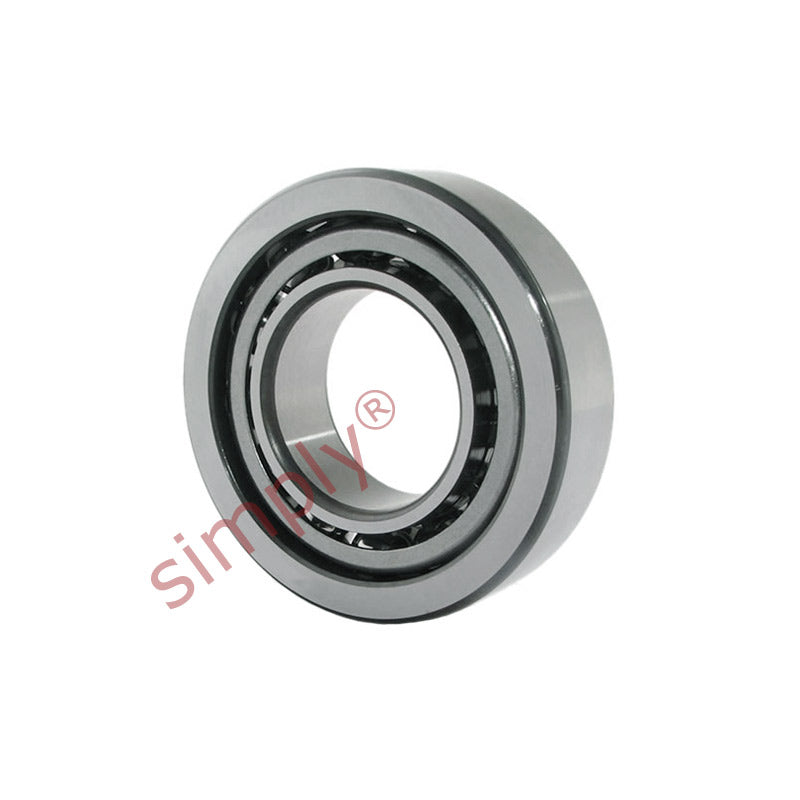

SKF 7312BECBM Single Row Angular Contact Ball Bearing 60x130x31mm
SKF 7312BECBM Single Row Angular Contact Ball Bearing 60x130x31mm
Regular price
$333.28
ex VAT
Regular price
Sale price
$333.28
ex VAT
Equivalent to: 7312BECBM
In stock
Price Break
4+
$223.24
8+
$210.69
12+
$208.19
16+
$205.68
25+
$203.17
50+
$200.66
99+
$188.12
199+
$185.61
249+
$183.10
499+
$180.59
999+
$175.58
Quantity
Couldn't load pickup availability
Share this product
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 130mm
- Width:
- 31mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 60mm |
|---|---|
| D | 130mm |
| B | 31mm |
| Dynamic load Cr | 104 kN |
| Static load Cor | 76.5 kN |
| Fatigue load limit Pu | 3.2 kN |
| Reference speed | 6700 rpm |
| Limit speed | 6700 rpm |
| Weight | 1.88 kg |
| d1 | 87.3mm |
| d2 | 72.6mm |
| D1 | 104.8mm |
| r1r2 min | 2.1mm |
| r3r4 min | 1.1mm |
| a | 55mm |
| da min | 72mm |
| Da max | 118mm |
| Db max | 123mm |
| ra max | 2mm |
| rb max | 1mm |
