SKU: 7313BEP-SKF

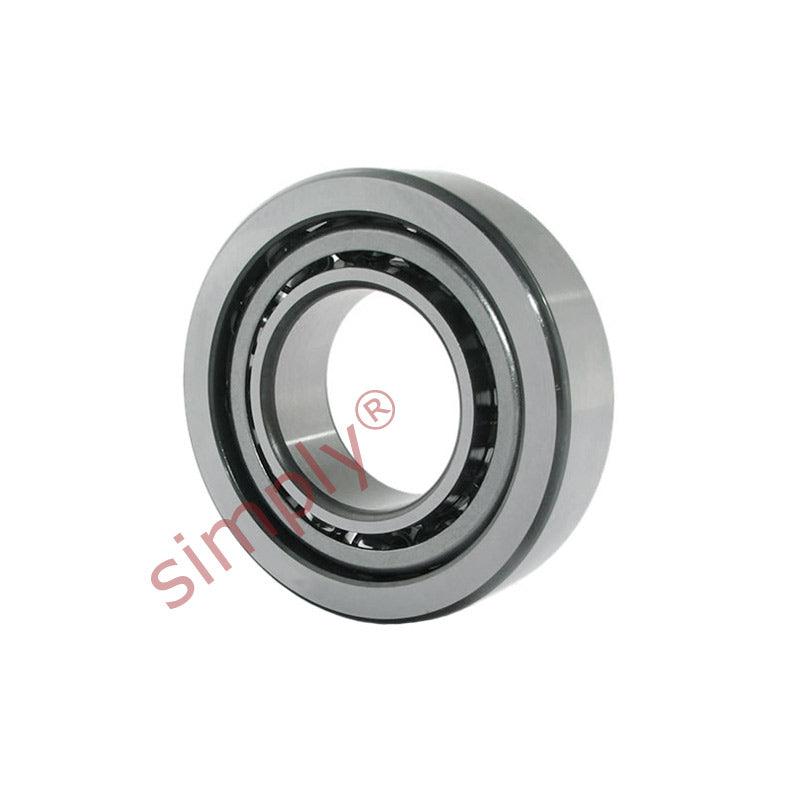

SKF 7313BEP Single Row Angular Contact Ball Bearing 65x140x33mm
SKF 7313BEP Single Row Angular Contact Ball Bearing 65x140x33mm
Regular price
$195.21
ex VAT
Regular price
Sale price
$195.21
ex VAT
Equivalent to: 7313BEP
In stock
Price Break
4+
$130.76
8+
$123.41
12+
$121.94
16+
$120.47
25+
$119.00
50+
$117.54
99+
$110.19
199+
$108.72
249+
$107.25
499+
$105.78
999+
$102.84
Quantity
Couldn't load pickup availability
Share this product
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 140mm
- Width:
- 33mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 65mm |
|---|---|
| D | 140mm |
| B | 33mm |
| Dynamic load Cr | 108 kN |
| Static load Cor | 80 kN |
| Fatigue load limit Pu | 3.35 kN |
| Reference speed | 5600 rpm |
| Limit speed | 5600 rpm |
| Weight | 2.15 kg |
| d1 | 94.2mm |
| d2 | 78.5mm |
| D1 | 112.9mm |
| r1r2 min | 2.1mm |
| r3r4 min | 1.1mm |
| a | 60mm |
| da min | 77mm |
| Da max | 128mm |
| Db max | 133mm |
| ra max | 2mm |
| rb max | 1mm |
