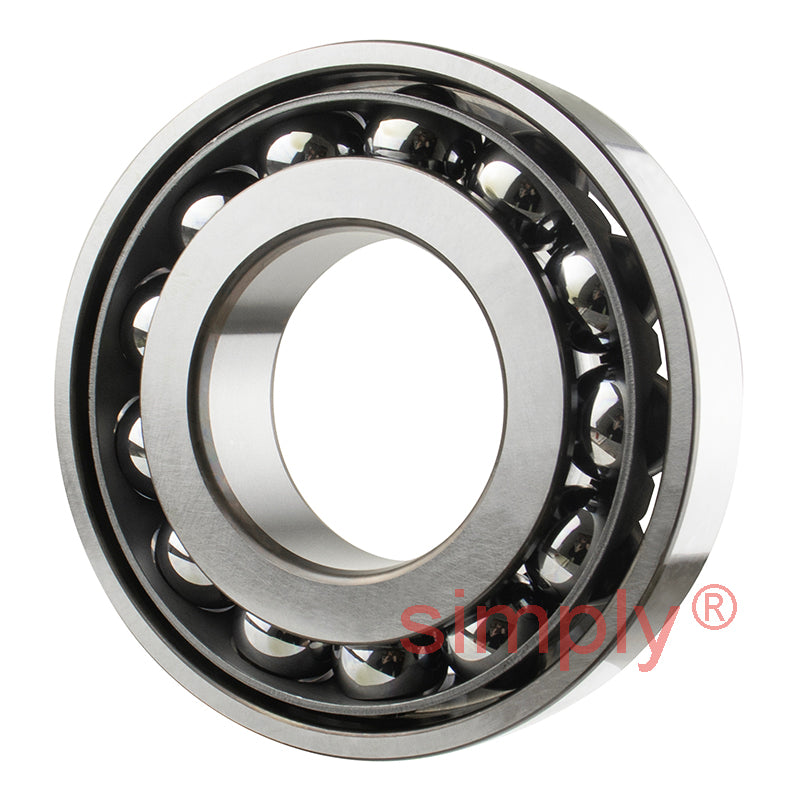

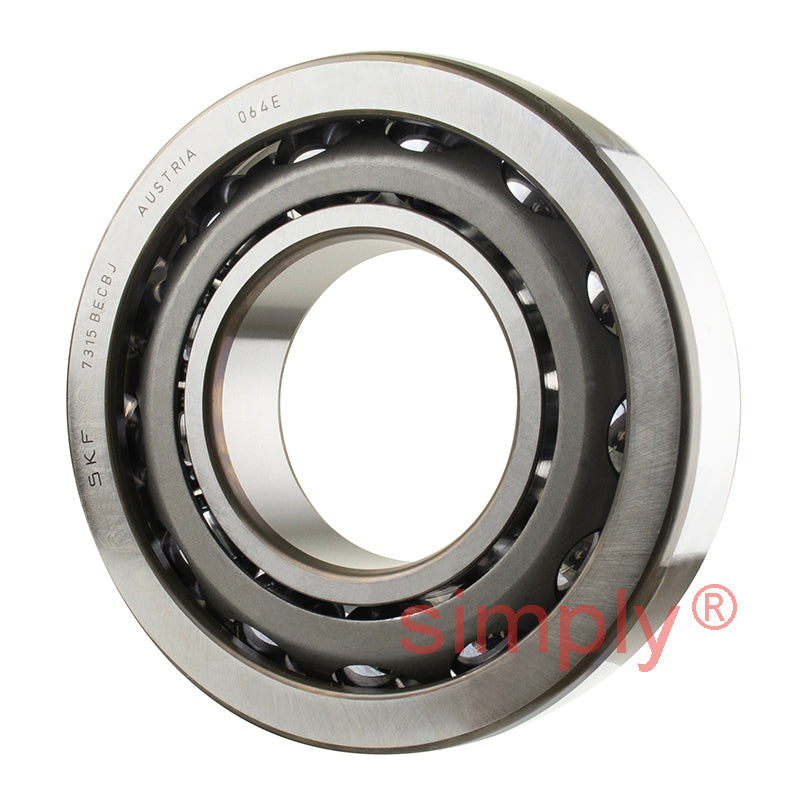

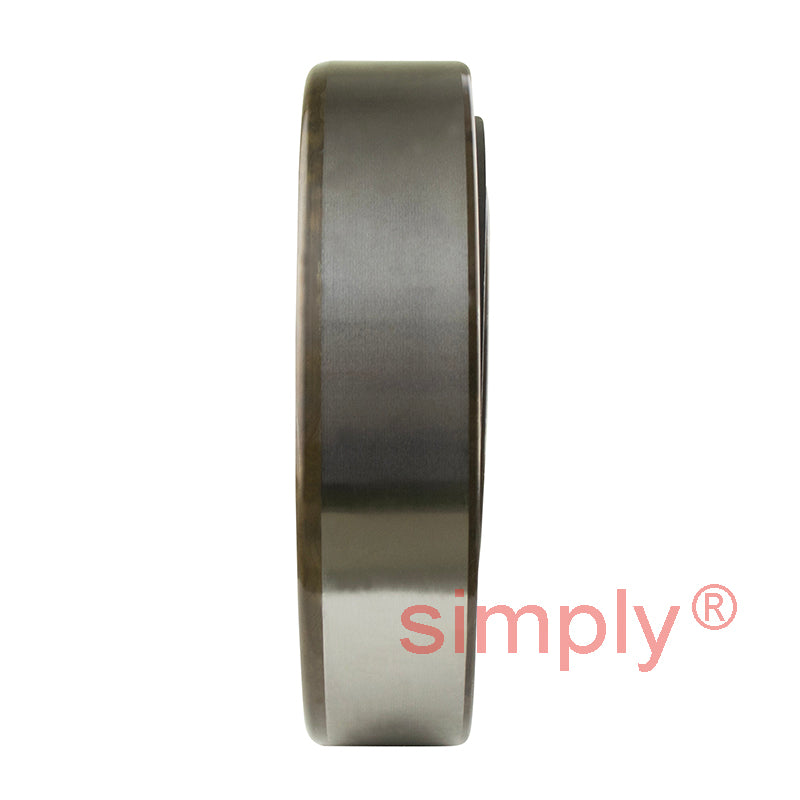

SKF 7315BECBJ Single Row Angular Contact Ball Bearing 75x160x37mm
SKF 7315BECBJ Single Row Angular Contact Ball Bearing 75x160x37mm
Regular price
$458.44
ex VAT
Regular price
Sale price
$458.44
ex VAT
Equivalent to: 7315BECBJ
In stock
Price Break
4+
$307.08
8+
$289.83
12+
$286.38
16+
$282.93
25+
$279.48
50+
$276.03
99+
$258.77
199+
$255.32
249+
$251.87
499+
$248.42
999+
$241.52
Quantity
Couldn't load pickup availability
Share this product
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 160mm
- Width:
- 37mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 75mm |
|---|---|
| D | 160mm |
| B | 37mm |
| Dynamic load Cr | 132 kN |
| Static load Cor | 104 kN |
| Fatigue load limit Pu | 4.15 kN |
| Reference speed | 5300 rpm |
| Limit speed | 5300 rpm |
| Weight | 3.2 kg |
| d1 | 108.25mm |
| d2 | 91.13mm |
| D1 | 128.9mm |
| r1r2 min | 2.1mm |
| r3r4 min | 1.1mm |
| a | 68mm |
| da min | 87mm |
| Da max | 148mm |
| Db max | 153mm |
| ra max | 2mm |
| rb max | 1mm |
