SKU: 7316BECBM-SKF

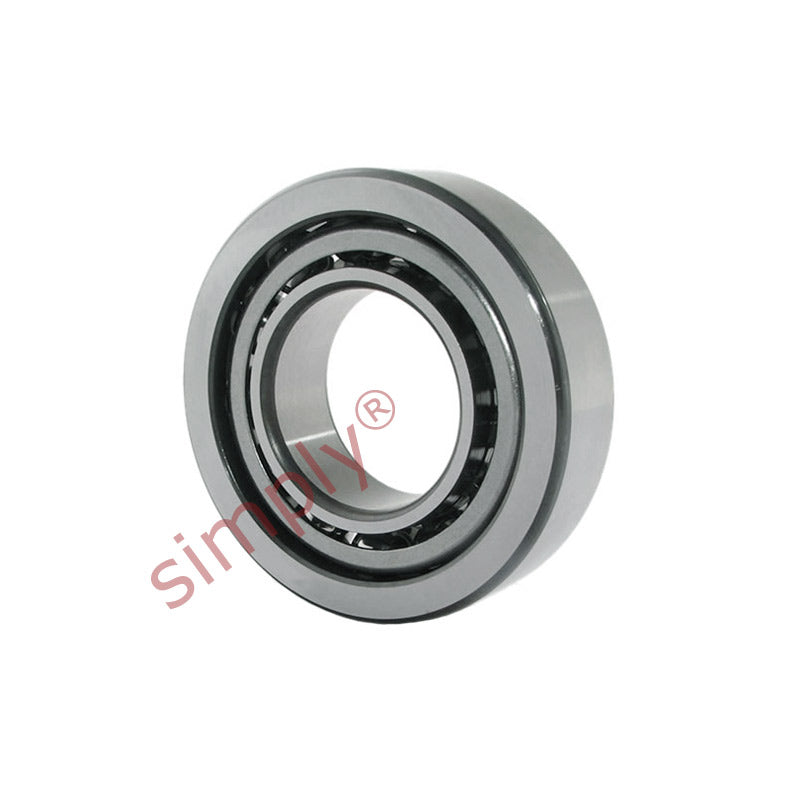

SKF 7316BECBM Single Row Angular Contact Ball Bearing 80x170x39mm
SKF 7316BECBM Single Row Angular Contact Ball Bearing 80x170x39mm
Regular price
$564.71
ex VAT
Regular price
Sale price
$564.71
ex VAT
Equivalent to: 7316BECBM
In stock
Price Break
4+
$378.26
8+
$357.01
12+
$352.76
16+
$348.51
25+
$344.26
50+
$340.01
99+
$318.76
199+
$314.51
249+
$310.26
499+
$306.01
999+
$297.51
Quantity
Couldn't load pickup availability
Share this product
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 170mm
- Width:
- 39mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 80mm |
|---|---|
| D | 170mm |
| B | 39mm |
| Dynamic load Cr | 143 kN |
| Static load Cor | 118 kN |
| Fatigue load limit Pu | 4.5 kN |
| Reference speed | 5000 rpm |
| Limit speed | 5000 rpm |
| Weight | 4.03 kg |
| d1 | 115.2mm |
| d2 | 97.1mm |
| D1 | 136.8mm |
| r1r2 min | 2.1mm |
| r3r4 min | 1.1mm |
| a | 72mm |
| da min | 92mm |
| Da max | 158mm |
| Db max | 163mm |
| ra max | 2mm |
| rb max | 1mm |
