SKU: 7322BECBP-SKF
SKF 7322BECBP Single Row Angular Contact Ball Bearing 110x240x50mm
SKF 7322BECBP Single Row Angular Contact Ball Bearing 110x240x50mm
Regular price
$1,194.01
ex VAT
Regular price
Sale price
$1,194.01
ex VAT
Equivalent to: 7322BECBP
In stock
Price Break
4+
$799.78
8+
$754.85
12+
$745.86
16+
$736.87
25+
$727.89
50+
$718.90
99+
$673.97
199+
$664.98
249+
$656.00
499+
$647.01
999+
$629.04
Quantity
Couldn't load pickup availability
Share this product
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 240mm
- Width:
- 50mm
- Seals / Shields:
- None
- Clearance:
- * Standard

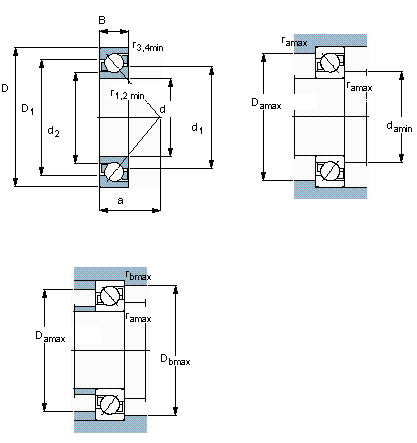

Technical
Technical
| d | 110mm |
|---|---|
| D | 240mm |
| B | 50mm |
| Dynamic load Cr | 240 kN |
| Static load Cor | 245 kN |
| Fatigue load limit Pu | 7.8 kN |
| Reference speed | 3600 rpm |
| Limit speed | 3600 rpm |
| Weight | 9.69 kg |
| d1 | 160.8mm |
| d2 | 135mm |
| D1 | 193.5mm |
| r1r2 min | 3mm |
| r3r4 min | 1.1mm |
| a | 99mm |
| da min | 124mm |
| Da max | 226mm |
| Db max | 233mm |
| ra max | 2.5mm |
| rb max | 1mm |
