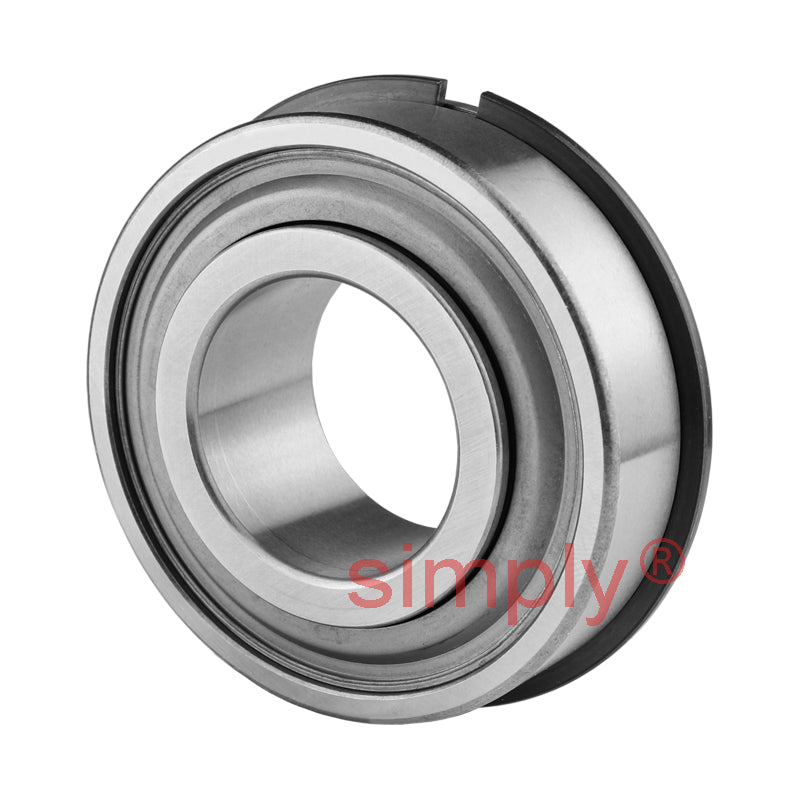

• RBC 7510DLG/NR Heavy Duty Precision Ground Rubber Sealed with Trash Guard Radial Bearing with Snap Ring 0.625x1.75x0.625 inch - Allow 2-3 Days
1 1

SKU: 7510-DLG/NR-RBC

RBC 7510DLG/NR Heavy Duty Precision Ground Rubber Sealed with Trash Guard Radial Bearing with Snap Ring 0.625x1.75x0.625 inch - Allow 2-3 Days

RBC 7510DLG/NR Heavy Duty Precision Ground Rubber Sealed with Trash Guard Radial Bearing with Snap Ring 0.625x1.75x0.625 inch - Allow 2-3 Days
$10.29 ex VAT
$10.29 ex VAT
Sale Sold out

Equivalent to: 7510/NR

In stock

Price Break
10+ $7.66
19+ $7.35
29+ $7.20
39+ $6.97
49+ $6.81
74+ $6.42
99+ $5.42
199+ $0.00
249+ $0.00
499+ $0.00
999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
RBC NICE 7500 Heavy Duty Precision Ground Rubber Sealed with Trash Guard Radial Bearing with Snap Ring: Similar in construction to the 1600 Series™ bearings, the 7500 Series™ bearings incorporate an incredibly effective single lip contact seal which includes a metal trash guard. Both the inner and outer rings are machined from chrome steel, precise heat treatment and grinding brings the hardened rings within tolerance range.
The 7500 Series™ bearings are recommended for use in any application where accuracy of rotation, near silent performance and precise adherence to exacting tolerances are a concern. The guarded seals ensure that lubricant is kept in while keeping dust and dirt out.
Benefits: Double sealed 7500 Series™ bearings are grease packed as standard, and are all provided with a snap ring groove with a snap ring pre-assembled.
Brand / Quality:
RBC / Nice - High Quality
Inside Diameter:
15.88mm = 0.625 (5/8) inch
Outside Diameter:
44.45mm = 1.75 (1-3/4) inch
Width:
15.88mm = 0.625 (5/8) inch
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
Bore d 0.625 inch = 15.88mm
Tolerance +.0000/-.0005
Outside Diameter D 1.75 inch = 44.45mm
Tolerance +.0000/-.0005
Width B 0.625 inch = 15.88mm
Tolerance +.000/-.005
A 0.0625 inch = 1.59mm
Inner Width C 0.75 inch = 19.05mm
Tolerance +.000/-.005
F 1.009 inch = 25.63mm
G 0.136 inch = 3.45mm
Tolerance +.000/- .005
H 0.042 inch = 1.07mm
J 1.9219 inch = 48.82mm
Radius R 0.035 inch = 0.89mm
Dynamic C 11548N
Static Co 4561N
da min 0.875 inch = 22.23mm
Da max 1.5 inch = 38.1mm
r max 0.035 inch = 0.89mm
