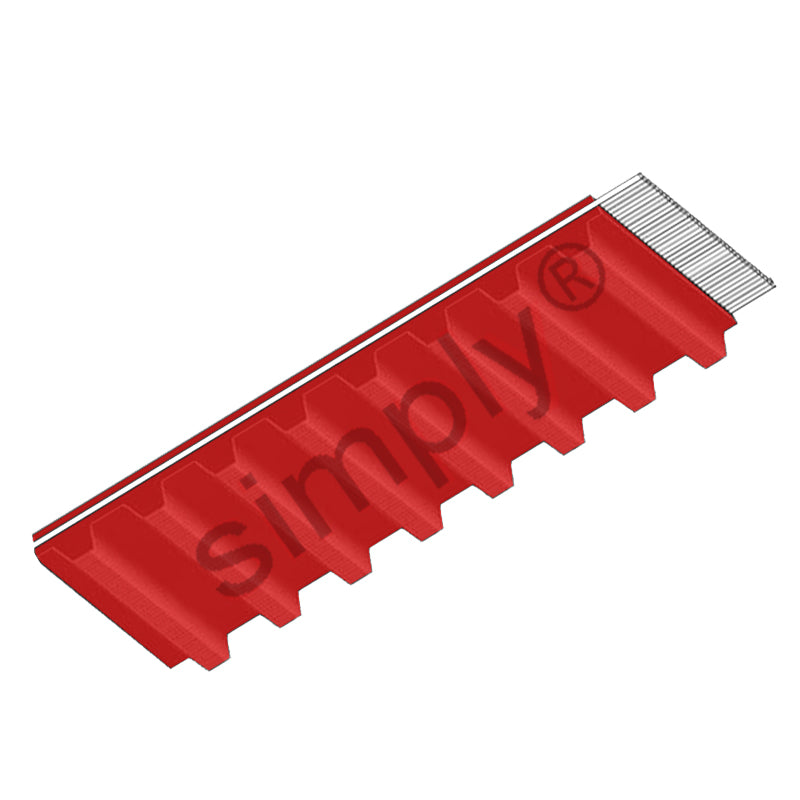

75AT5/690/G3 ContiTech Gen III Synchroflex Timing Belt 75mm Width 5mm Pitch 138 Teeth

SKU: 75AT5/690/G3

75AT5/690/G3 ContiTech Gen III Synchroflex Timing Belt 75mm Width 5mm Pitch 138 Teeth

$206.03 ex VAT
$206.03
ex VAT
Not in stock

Quantity Price Breaks

3 $183.37
5 $173.07
10 $171.00
15 $168.94
20 $166.88
30 $164.82
40 $154.52
50 $152.46
60 $150.40
75 $148.34
100 $144.22
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
75AT5/690/G3 ContiTech Gen III Synchroflex Timing Belt 75mm Width 5mm Pitch 138 Teeth
SKU: 75AT5/690/G3

75AT5/690/G3 ContiTech Gen III Synchroflex Timing Belt 75mm Width 5mm Pitch 138 Teeth

$206.03 ex VAT
$206.03
ex VAT

Description

AT Generation 3 SYNCHROFLEX® Timing Belts: This belt is manufactured by ContiTech, specialists in rubber and plastics technology. This Synchroflex belt is a truly endless belt, suitable for AT pulleys.

The Generation 3 (Gen III) Synchroflex belt construction consists of high-tensile steel cord tension members and wear-resistant polyurethane which makes this belt extremely durable and provides high performance. Also, this belt provides an impressive 25% increase in power transmission when compared to the AT/ATP standard.

Benefits: Low elastic elongation, high flank load capacity, 25% more power than standard AT and high-performance polyurethane & steel reinforced.

Technical

No of Teeth = 138
Belt Width = 75mm
Belt Pitch = 5mm (AT5)
Belt Length = 690mm
Belt Thickness (hs) = 1.5mm
Tooth Height (ht) = 1.2mm
Tooth Pitch (t) = 5mm
Flank Angle (f) = 50 deg
Tension Member Loadings = 6803 N
Belt Weight (per metre) = 0.27kg
