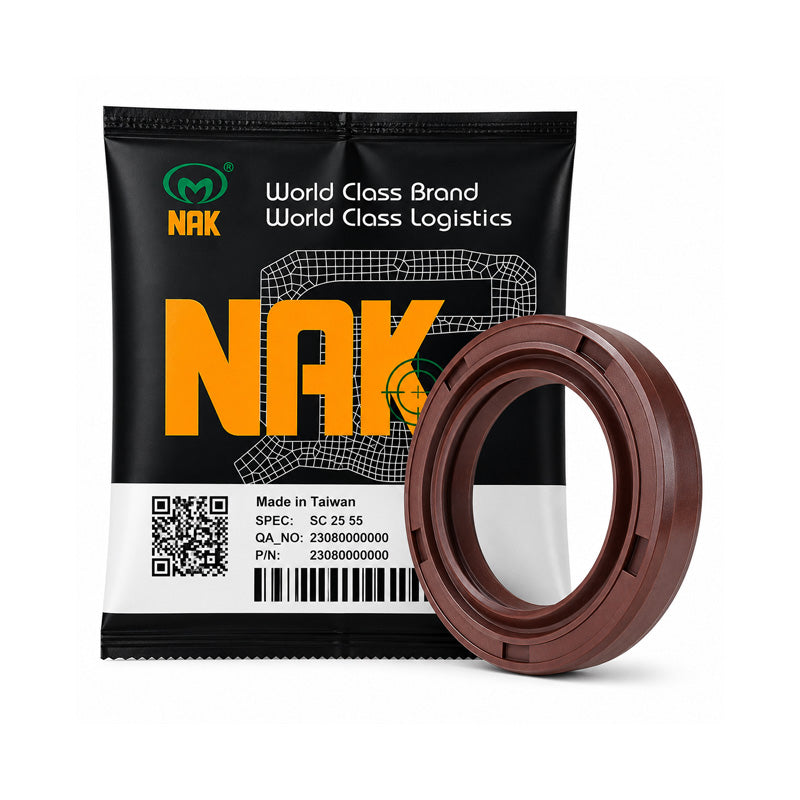

NAK 77x100x10mm FKM Rubber Additional Lining Single Lip Rotary Shaft Oil Seal with Stainless Spring SF - Allow 7-10 Days

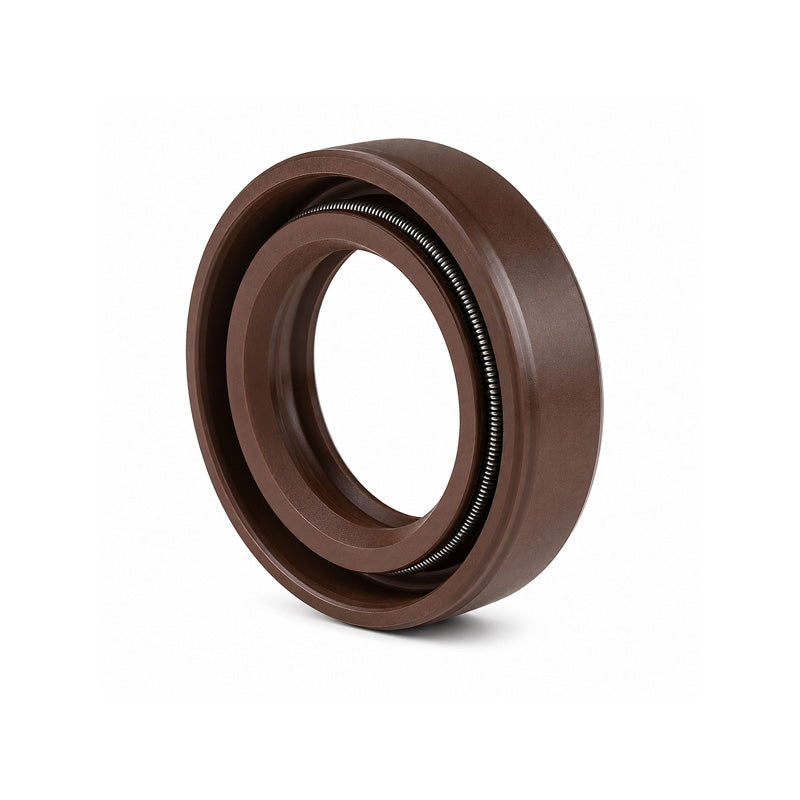

NAK SF FKM Rubber Oils Seals: Oil seals are used in a variety of different applications in which a rotating shaft is lubricated by oil or grease. They are engineered to facilitate the smooth operation of your equipment, serving as a barrier to prevent the leakage of oils and greases while also keeping foreign substances from entering. SF type seals have a special design featuring an additional inner rubber lining for better protection of the inner case. They have a rubber-covered outside diameter with a single sealing lip on the inside diameter. The SF types feature a garter spring which allows some give to prevent a build-up of friction. (Seals under 5mm width may not always feature a spring.)
Benefits: High-temperature range, Chemical resistance, Higher wear resistance, Lower drag coefficient.

Brand / Quality:

NAK - High Quality

Inside Diameter:

77mm

Outside Diameter:

100mm

Width:

10mm

Seals / Shields:

FKM

Style:

SF

Colour:

Brown
