SKU: 7907UCG/GNP42-NTN

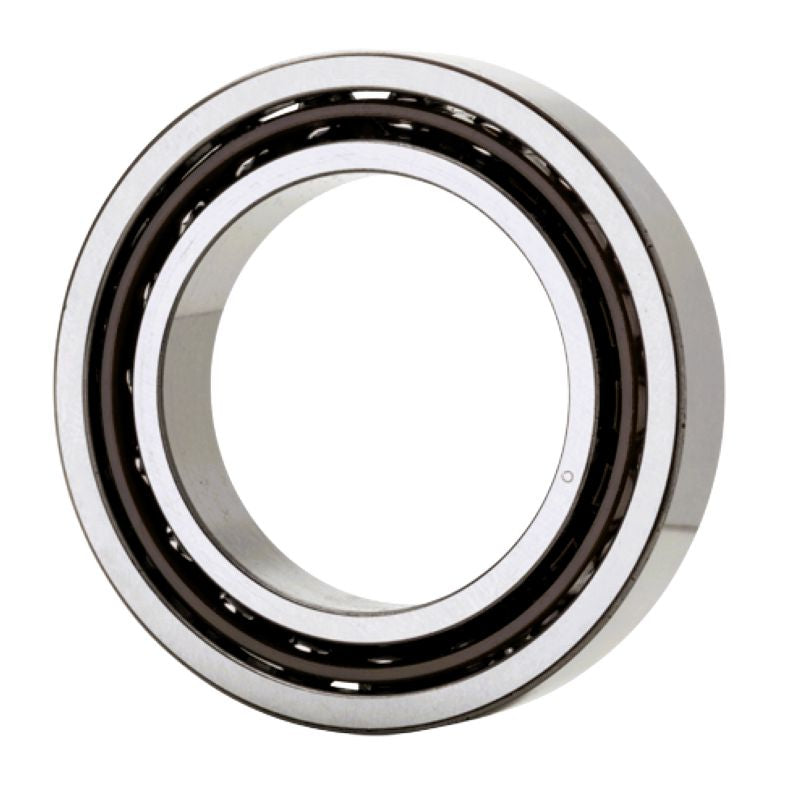

NTN 7907UCG/GNP42 Super Pricision Single Row Angular Contact Ball Bearing 35x55x10mm - Allow 2-3 Days

NTN 7907UCG/GNP42 Super Pricision Single Row Angular Contact Ball Bearing 35x55x10mm - Allow 2-3 Days
Regular price $206.07 ex VAT
Regular price Sale price $206.07 ex VAT
Sale Sold out

Equivalent to: 7907UCG/GNP42U3G

In stock

Price Break
10+ $153.52
19+ $147.32
29+ $144.22
39+ $139.56
49+ $136.46
74+ $128.71
99+ $108.55
199+ $0.00
249+ $0.00
499+ $0.00
999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 35mm
D - Outside diameter 55mm
B - Width 10mm
d1 - Inner ring outside diameter 41.6mm
d2 - Inner ring outside diameter 39.9mm
D1 - Inner ring inside diameter 48.4mm
D2 - Inner ring inside diameter 51.7mm
a - Charge load application point 11.1mm
Contact angle 15 degrees
rs min - Minimum fillet radius 0.6mm
r1s min - Minimum fillet radius 0.3mm
Precision class P42
C - Dynamic load rating 15.2 kN
C0 - Static load rating 10.3 kN
f0 - Coefficient 15.5
Preload level GN
Preload value 78 N
Axial rigidity 45.8 N/ym
Radial rigidity 253.6 N/ym
N Lim - Oil limiting speed 41700 tr/min
N Lim - Grease limiting speed 26000 tr/min
da min - Inner ring minimum shoulder diameter 39.5mm
Da max - Outer ring maximum shoulder diameter 50.5mm
Db max - Outer ring maximum shoulder diameter 52.5mm
r1a max - Maximum fillet radius 0.3mm
ra max - Maximum shaft & housing fillet radius 0.6mm
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
