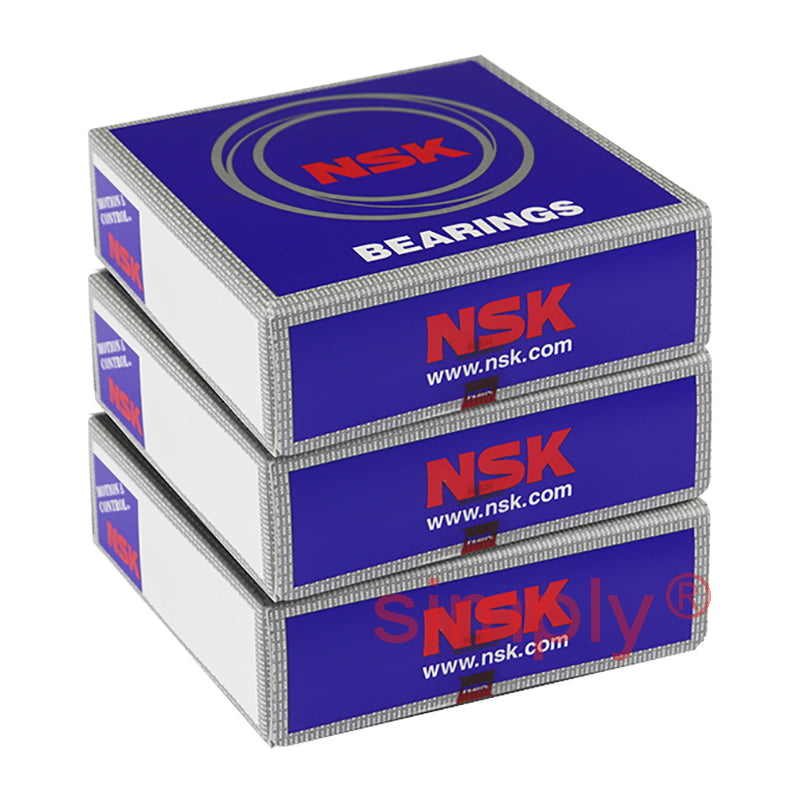

• NSK 7908A5TRV1VDUDMP3 Super Precision Sealed Angular Contact Spindle Bearing 40x62x12mm (Set of 3)
  • NSK
1 2

SKU: 7908A5TRV1VDUDMP3-NSK

NSK 7908A5TRV1VDUDMP3 Super Precision Sealed Angular Contact Spindle Bearing 40x62x12mm (Set of 3)

NSK 7908A5TRV1VDUDMP3 Super Precision Sealed Angular Contact Spindle Bearing 40x62x12mm (Set of 3)
$725.18 ex VAT
$725.18 ex VAT
Sale Sold out

In stock

Price Break
3+ $476.22
5+ $449.47
10+ $444.12
25+ $438.77
49+ $433.41
74+ $428.06
99+ $401.31
199+ $395.96
249+ $390.61
499+ $385.26
999+ $374.56

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NSK - High Quality
Inside Diameter:
40mm
Outside Diameter:
62mm
Width:
12mm
Seals / Shields:
Rubber Sealed
Style:
Universal Matched Triple Bearing Set
Contact Angle:
25 Degree contact angle
Bearing Preload:
Medium preload
Technical
--- Bearing dimensions
d 40mm
D 62mm
B 12mm
r<sub>min</sub> 0.6mm
r1<sub>min</sub> 0.3mm
--- Loads angles and speeds
C<sub>r</sub> 15Kn
C<sub>or</sub> 11.2kN
Axial load Kn 8.9 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 17.9mm
Max speed in grease 19700 rpm
Max speed in oil 29500 rpm
--- Fitting dimensions
d<sub>a min</sub> 45mm
D<sub>a max</sub> 57mm
D<sub>b max</sub> 59.5mm
r<sub>a max</sub> 0.6mm
r<sub>b max</sub> 0.3mm
Weight 0.33kg
