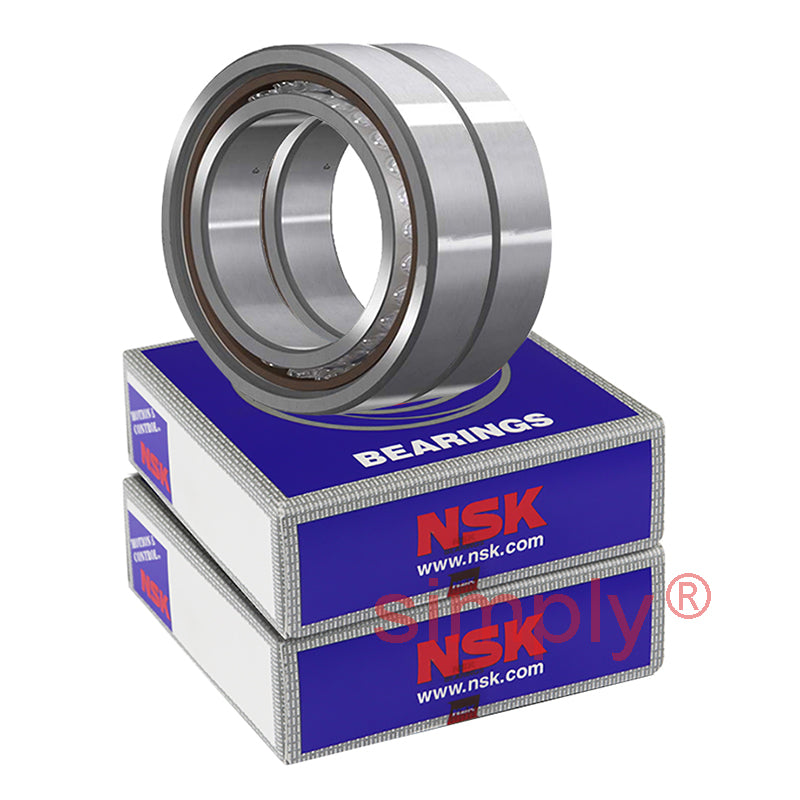

• NSK 7908CTRDUELP3 Super Precision Angular Contact Spindle Bearing 40x62x12mm (Set of 2)
  • NSK
1 2

SKU: 7908CTRDUELP3-NSK

NSK 7908CTRDUELP3 Super Precision Angular Contact Spindle Bearing 40x62x12mm (Set of 2)

NSK 7908CTRDUELP3 Super Precision Angular Contact Spindle Bearing 40x62x12mm (Set of 2)
$392.05 ex VAT
$392.05 ex VAT
Sale Sold out

In stock

Price Break
3+ $262.60
5+ $247.85
10+ $244.90
25+ $241.95
49+ $239.00
74+ $236.05
99+ $221.30
199+ $218.34
249+ $215.39
499+ $212.44
999+ $206.54

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NSK - High Quality
Inside Diameter:
40mm
Outside Diameter:
62mm
Width:
12mm
Seals / Shields:
None
Style:
Universal Matched Pair of Bearings
Contact Angle:
15 Degree contact angle
Bearing Preload:
Extra light preload
Technical
--- Bearing dimensions
d 40mm
D 62mm
B 12mm
r<sub>min</sub> 0.6mm
r1<sub>min</sub> 0.3mm
--- Loads angles and speeds
C<sub>r</sub> 15.9Kn
C<sub>or</sub> 11.7kN
Axial load Kn 8.4 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 15.7
Effective diameter 12.8mm
Max speed in grease 22600 rpm
Max speed in oil 34400 rpm
--- Fitting dimensions
d<sub>a min</sub> 45mm
D<sub>a max</sub> 57mm
D<sub>b max</sub> 59.5mm
r<sub>a max</sub> 0.6mm
r<sub>b max</sub> 0.3mm
Weight 0.218kg
