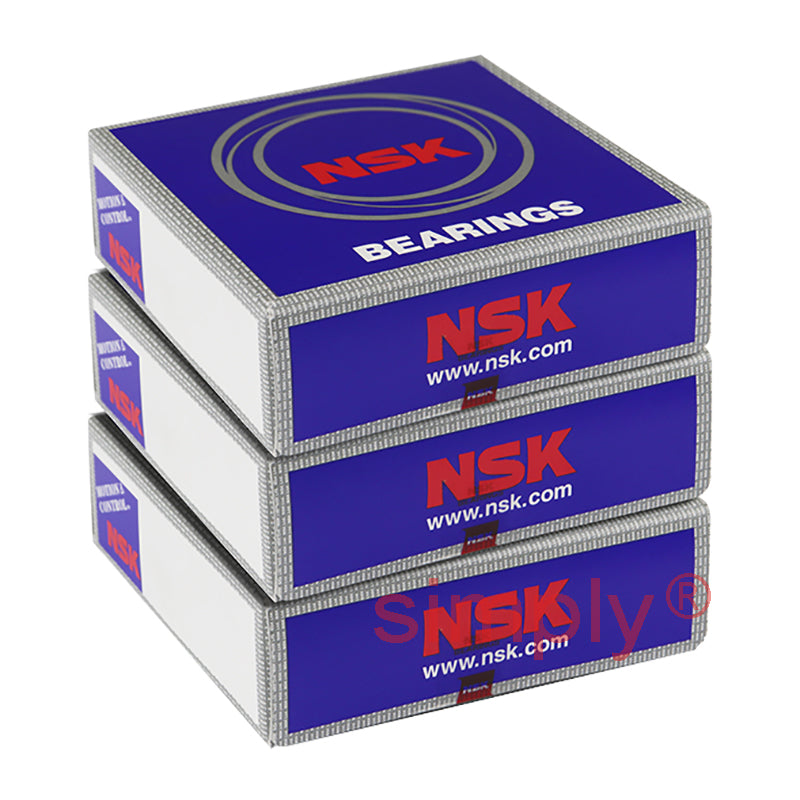

• NSK 7910A5TRV1VDUDLP3 Super Precision Sealed Angular Contact Spindle Bearing 50x72x12mm (Set of 3)
  • NSK
1 2

SKU: 7910A5TRV1VDUDLP3-NSK

NSK 7910A5TRV1VDUDLP3 Super Precision Sealed Angular Contact Spindle Bearing 50x72x12mm (Set of 3)

NSK 7910A5TRV1VDUDLP3 Super Precision Sealed Angular Contact Spindle Bearing 50x72x12mm (Set of 3)
$782.95 ex VAT
$782.95 ex VAT
Sale Sold out

In stock

Price Break
3+ $514.16
5+ $485.28
10+ $479.50
25+ $473.72
49+ $467.95
74+ $462.17
99+ $433.28
199+ $427.51
249+ $421.73
499+ $415.95
999+ $404.40

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NSK - High Quality
Inside Diameter:
50mm
Outside Diameter:
72mm
Width:
12mm
Seals / Shields:
Rubber Sealed
Style:
Universal Matched Triple Bearing Set
Contact Angle:
25 Degree contact angle
Bearing Preload:
Light preload
Technical
--- Bearing dimensions
d 50mm
D 72mm
B 12mm
r<sub>min</sub> 0.6mm
r1<sub>min</sub> 0.3mm
--- Loads angles and speeds
C<sub>r</sub> 16.7Kn
C<sub>or</sub> 14.2kN
Axial load Kn 11 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 20.2mm
Max speed in grease 16400 rpm
Max speed in oil 24600 rpm
--- Fitting dimensions
d<sub>a min</sub> 55mm
D<sub>a max</sub> 67mm
D<sub>b max</sub> 69.5mm
r<sub>a max</sub> 0.6mm
r<sub>b max</sub> 0.3mm
Weight 0.396kg
