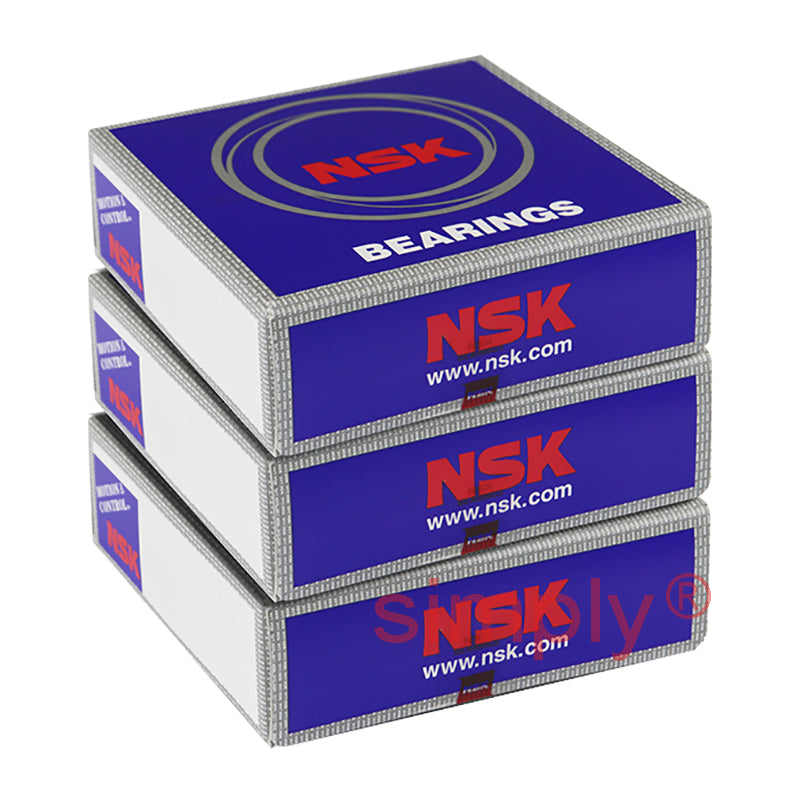

• NSK 7910CTRDUDLP3 Super Precision Angular Contact Spindle Bearing 50x72x12mm (Set of 3)
  • NSK
1 2

SKU: 7910CTRDUDLP3-NSK

NSK 7910CTRDUDLP3 Super Precision Angular Contact Spindle Bearing 50x72x12mm (Set of 3)

NSK 7910CTRDUDLP3 Super Precision Angular Contact Spindle Bearing 50x72x12mm (Set of 3)
$601.66 ex VAT
$601.66 ex VAT
Sale Sold out

In stock

Price Break
3+ $395.11
5+ $372.91
10+ $368.47
25+ $364.03
49+ $359.59
74+ $355.15
99+ $332.96
199+ $328.52
249+ $324.08
499+ $319.64
999+ $310.76

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NSK - High Quality
Inside Diameter:
50mm
Outside Diameter:
72mm
Width:
12mm
Seals / Shields:
None
Style:
Universal Matched Triple Bearing Set
Contact Angle:
15 Degree contact angle
Bearing Preload:
Light preload
Technical
--- Bearing dimensions
d 50mm
D 72mm
B 12mm
r<sub>min</sub> 0.6mm
r1<sub>min</sub> 0.3mm
--- Loads angles and speeds
C<sub>r</sub> 17.7Kn
C<sub>or</sub> 15kN
Axial load Kn 9.45 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 16.2
Effective diameter 14.2mm
Max speed in grease 18900 rpm
Max speed in oil 28700 rpm
--- Fitting dimensions
d<sub>a min</sub> 55mm
D<sub>a max</sub> 67mm
D<sub>b max</sub> 69.5mm
r<sub>a max</sub> 0.6mm
r<sub>b max</sub> 0.3mm
Weight 0.39kg
