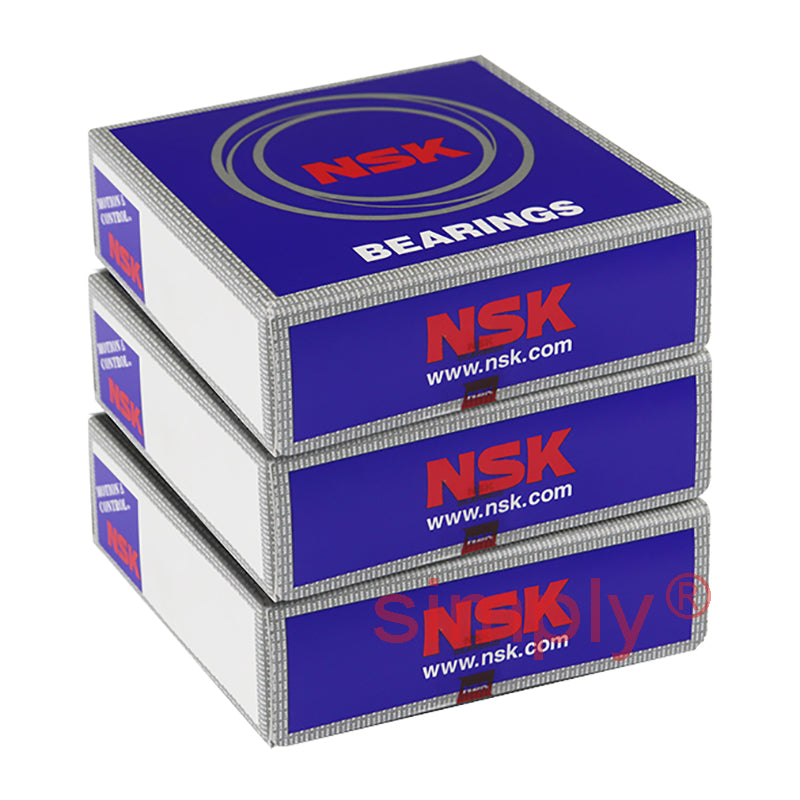

• NSK 7910CTRDUDMP3 Super Precision Angular Contact Spindle Bearing 50x72x12mm (Set of 3)
  • NSK
1 2

SKU: 7910CTRDUDMP3-NSK

NSK 7910CTRDUDMP3 Super Precision Angular Contact Spindle Bearing 50x72x12mm (Set of 3)

NSK 7910CTRDUDMP3 Super Precision Angular Contact Spindle Bearing 50x72x12mm (Set of 3)
$619.58 ex VAT
$619.58 ex VAT
Sale Sold out

In stock

Price Break
3+ $406.88
5+ $384.02
10+ $379.45
25+ $374.88
49+ $370.31
74+ $365.74
99+ $342.88
199+ $338.31
249+ $333.73
499+ $329.16
999+ $320.02

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NSK - High Quality
Inside Diameter:
50mm
Outside Diameter:
72mm
Width:
12mm
Seals / Shields:
None
Style:
Universal Matched Triple Bearing Set
Contact Angle:
15 Degree contact angle
Bearing Preload:
Medium preload
Technical
--- Bearing dimensions
d 50mm
D 72mm
B 12mm
r<sub>min</sub> 0.6mm
r1<sub>min</sub> 0.3mm
--- Loads angles and speeds
C<sub>r</sub> 17.7Kn
C<sub>or</sub> 15kN
Axial load Kn 9.45 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 16.2
Effective diameter 14.2mm
Max speed in grease 18900 rpm
Max speed in oil 28700 rpm
--- Fitting dimensions
d<sub>a min</sub> 55mm
D<sub>a max</sub> 67mm
D<sub>b max</sub> 69.5mm
r<sub>a max</sub> 0.6mm
r<sub>b max</sub> 0.3mm
Weight 0.39kg
