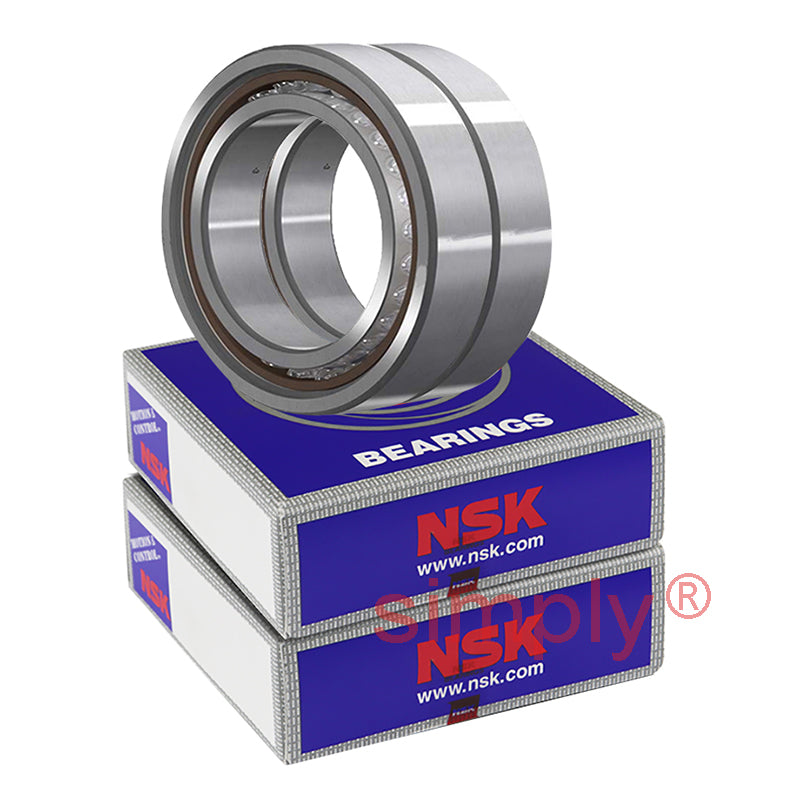

• NSK 7911A5TRV1VDUMP3 Super Precision Sealed Angular Contact Spindle Bearing 55x80x13mm (Set of 2)
  • NSK
1 2

SKU: 7911A5TRV1VDUMP3-NSK

NSK 7911A5TRV1VDUMP3 Super Precision Sealed Angular Contact Spindle Bearing 55x80x13mm (Set of 2)

NSK 7911A5TRV1VDUMP3 Super Precision Sealed Angular Contact Spindle Bearing 55x80x13mm (Set of 2)
$629.55 ex VAT
$629.55 ex VAT
Sale Sold out

In stock

Price Break
3+ $421.69
5+ $398.00
10+ $393.26
25+ $388.52
49+ $383.79
74+ $379.05
99+ $355.36
199+ $350.62
249+ $345.88
499+ $341.14
999+ $331.67

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NSK - High Quality
Inside Diameter:
55mm
Outside Diameter:
80mm
Width:
13mm
Seals / Shields:
Rubber Sealed
Style:
Universal Matched Pair of Bearings
Contact Angle:
25 Degree contact angle
Bearing Preload:
Medium preload
Technical
--- Bearing dimensions
d 55mm
D 80mm
B 13mm
r<sub>min</sub> 1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 19Kn
C<sub>or</sub> 16.8kN
Axial load Kn 12.5 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 22.2mm
Max speed in grease 14900 rpm
Max speed in oil 22300 rpm
--- Fitting dimensions
d<sub>a min</sub> 61mm
D<sub>a max</sub> 74mm
D<sub>b max</sub> 75mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.5mm
Weight 0.368kg
