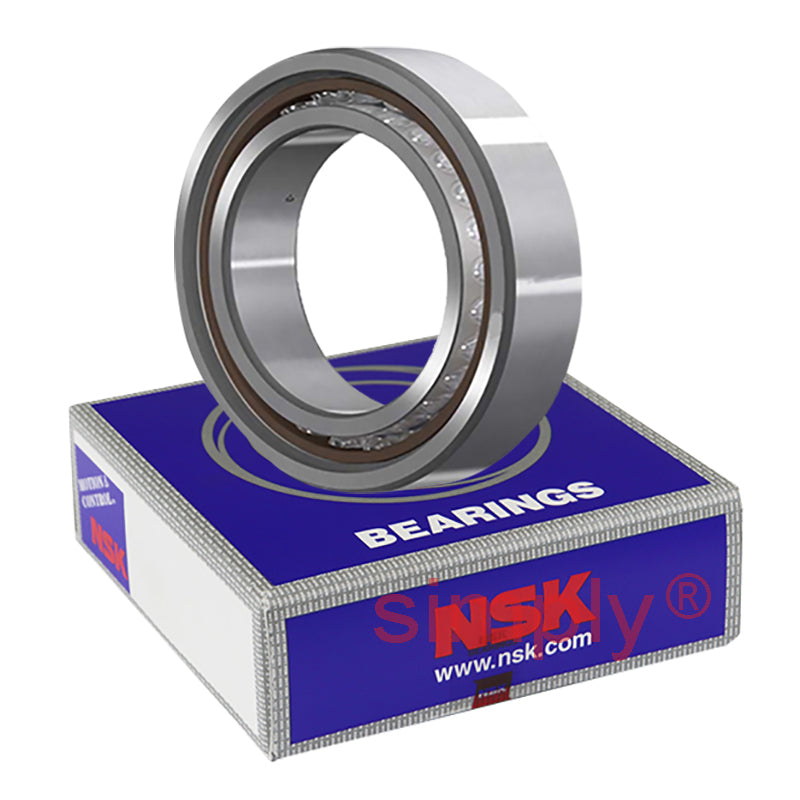

• NSK 7911CTRV1VSULP3 Super Precision Sealed Angular Contact Spindle Bearing 55x80x13mm
  • NSK
1 2

SKU: 7911CTRV1VSULP3-NSK

NSK 7911CTRV1VSULP3 Super Precision Sealed Angular Contact Spindle Bearing 55x80x13mm

NSK 7911CTRV1VSULP3 Super Precision Sealed Angular Contact Spindle Bearing 55x80x13mm
$315.70 ex VAT
$315.70 ex VAT
Sale Sold out

In stock

Price Break
3+ $211.47
5+ $199.59
10+ $197.21
25+ $194.83
49+ $192.46
74+ $190.08
99+ $178.20
199+ $175.83
249+ $173.45
499+ $171.07
999+ $166.32

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NSK - High Quality
Inside Diameter:
55mm
Outside Diameter:
80mm
Width:
13mm
Seals / Shields:
Rubber Sealed
Style:
Single Universal Matchable Bearing
Contact Angle:
15 Degree contact angle
Bearing Preload:
Light preload
Technical
--- Bearing dimensions
d 55mm
D 80mm
B 13mm
r<sub>min</sub> 1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 20.1Kn
C<sub>or</sub> 17.7kN
Axial load Kn 11 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 16.3
Effective diameter 15.5mm
Max speed in grease 17100 rpm
Max speed in oil 26000 rpm
--- Fitting dimensions
d<sub>a min</sub> 61mm
D<sub>a max</sub> 74mm
D<sub>b max</sub> 75mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.5mm
Weight 0.182kg
