• NSK 7918CTRV1VDBMP3 Super Precision Sealed Angular Contact Spindle Bearing 90x125x18mm (Set of 2)
  • NSK
1 2

SKU: 7918CTRV1VDBMP3-NSK

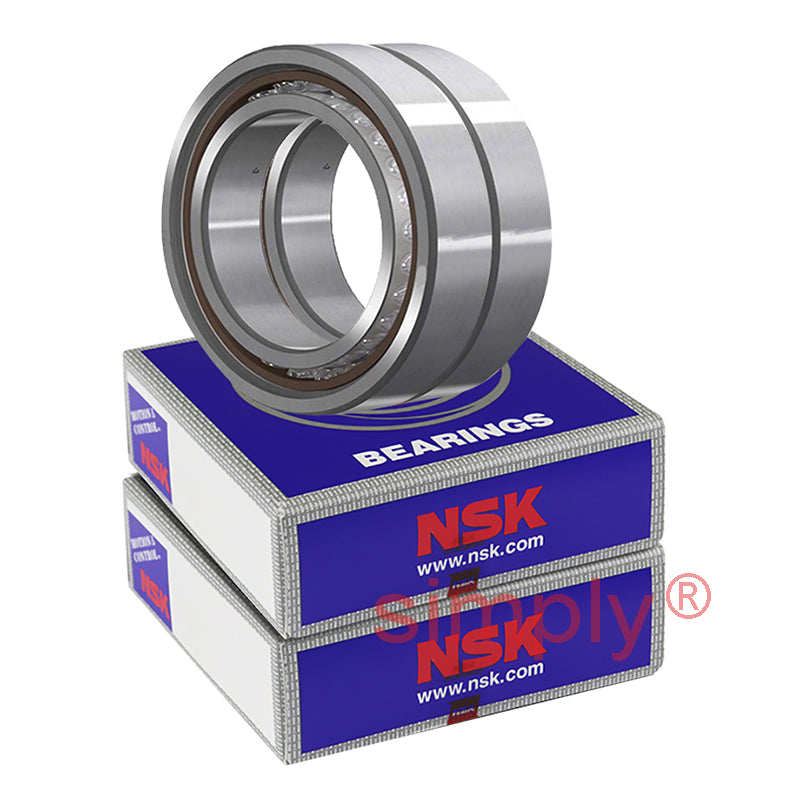

NSK 7918CTRV1VDBMP3 Super Precision Sealed Angular Contact Spindle Bearing 90x125x18mm (Set of 2)

NSK 7918CTRV1VDBMP3 Super Precision Sealed Angular Contact Spindle Bearing 90x125x18mm (Set of 2)
$1,273.05 ex VAT
$1,273.05 ex VAT
Sale Sold out

In stock

Price Break
3+ $852.72
5+ $804.82
10+ $795.24
25+ $785.66
49+ $776.07
74+ $766.49
99+ $718.59
199+ $709.01
249+ $699.43
499+ $689.84
999+ $670.68

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NSK - High Quality
Inside Diameter:
90mm
Outside Diameter:
125mm
Width:
18mm
Seals / Shields:
Rubber Sealed
Style:
Universal Matched Pair of Bearings
Contact Angle:
15 Degree contact angle
Bearing Preload:
Medium preload
Technical
--- Bearing dimensions
d 90mm
D 125mm
B 18mm
r<sub>min</sub> 1.1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 44Kn
C<sub>or</sub> 46kN
Axial load Kn 29.1 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 16.6
Effective diameter 23.4mm
Max speed in grease 10700 rpm
Max speed in oil 16300 rpm
--- Fitting dimensions
d<sub>a min</sub> 97mm
D<sub>a max</sub> 118mm
D<sub>b max</sub> 120mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.6mm
Weight 1.136kg
