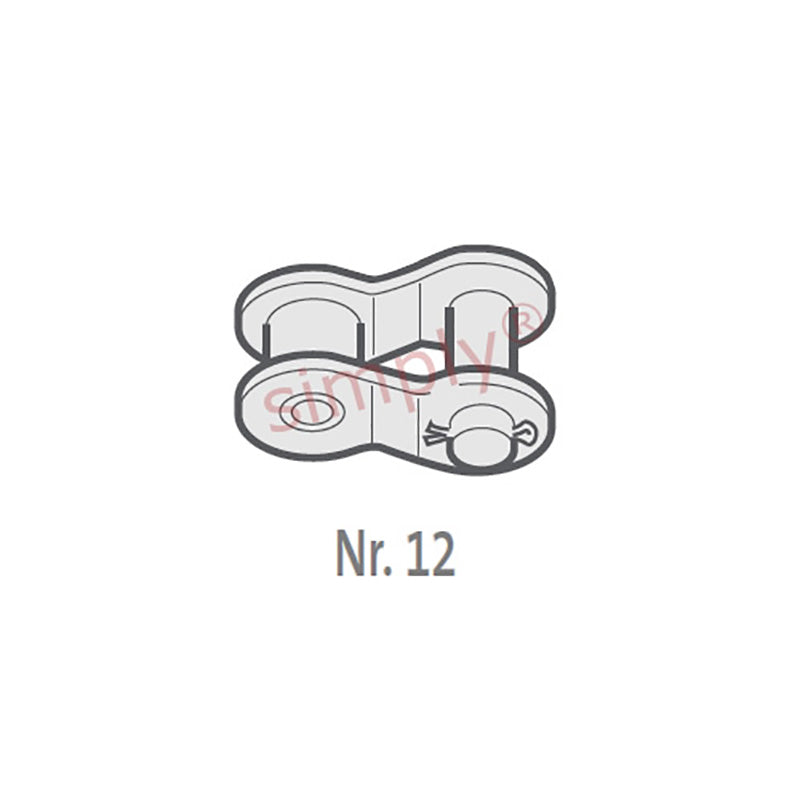

• Renold Blue Box 80-1-NO12 ANSI / AS Simplex Chain Single Cranked Cottered Link 1 inch Pitch
  • Renold
1 2

SKU: 80-1-BB-NO12-RENOLD

Renold Blue Box 80-1-NO12 ANSI / AS Simplex Chain Single Cranked Cottered Link 1 inch Pitch

Renold Blue Box 80-1-NO12 ANSI / AS Simplex Chain Single Cranked Cottered Link 1 inch Pitch
$39.22 ex VAT
$39.22 ex VAT
Sale Sold out

In stock

Price Break
2+ $26.27
5+ $24.79
10+ $24.50
29+ $24.20
49+ $23.91
75+ $23.61
100+ $22.14
200+ $21.84
250+ $21.55
500+ $21.25
1000+ $20.66

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Renold - High Quality
Pitch:
25.4mm = 1 inch
Technical
Pitch (A) 1 inch
Pitch (A) 25.4mm
Inside Width min (B) 15.75mm
Roller Diameter max (C) 15.88mm
Plate Height max (D) 24.13mm
Plate Width Inner max (E) 3.25mm
Plate Width Outer max (F) 3.25mm
Pin Diameter max (G) 7.94mm
Pin Length max (H2) 32.7mm
Connecting Link Extension max (J) 3mm
ISO606 Tensile Strength min 55600 N
Weight 0.02kg/m
