SKU: 80-2-BB-NO11-RENOLD
Renold Blue Box 80-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 1 inch Pitch
- Regular price
- $38.92 ex VAT
- Sale price
- $38.92
- Regular price
-
Not in stock
Quantity Price Breaks
2
$34.64
5
$32.69
10
$32.30
29
$31.91
49
$31.53
75
$31.14
100
$29.19
200
$28.80
250
$28.41
500
$28.02
1000
$27.24
SKU:
80-2-BB-NO11-RENOLD
Renold Blue Box 80-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 1 inch Pitch
- Regular price
- $38.92 ex VAT
- Sale price
- $38.92
- Regular price
-
Description

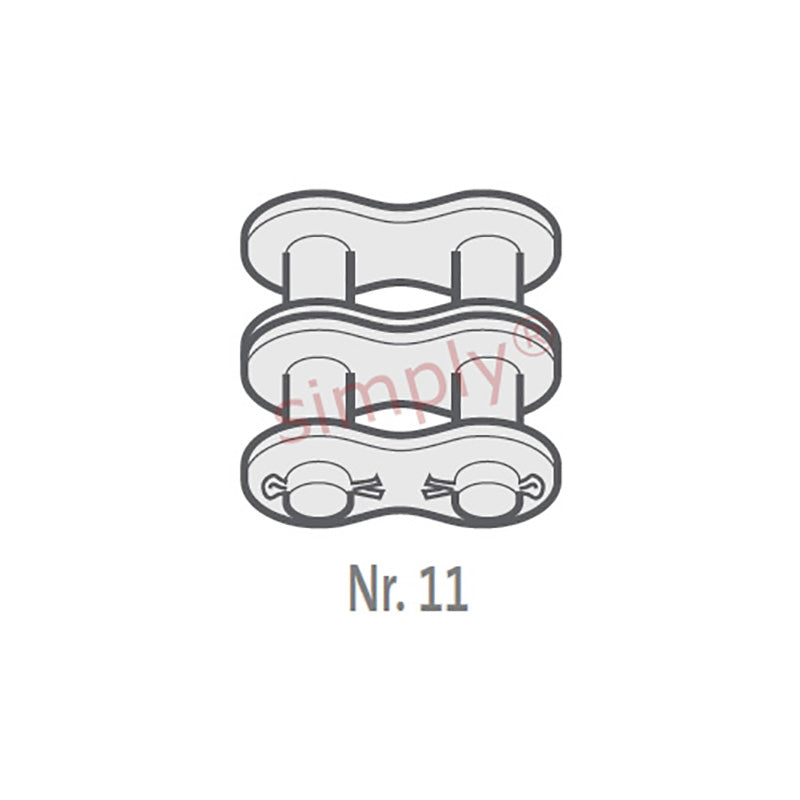

| Renold No. 11 ANSI Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
Technical
| Pitch (A) | = | 1 inch |
| Pitch (A) | = | 25.4mm |
| Inside Width min (B) | = | 15.75mm |
| Roller Diameter max (C) | = | 15.88mm |
| Plate Height max (D) | = | 24.13mm |
| Plate Width Inner max (E) | = | 3.25mm |
| Plate Width Outer max (F) | = | 3.25mm |
| Pin Diameter max (G) | = | 7.94mm |
| Pin Length max (H2) | = | 61.9mm |
| Connecting Link Extension max (J) | = | 3mm |
| Transverse Pitch nom (K) | = | 29.29mm |
| ISO606 Tensile Strength min | = | 111200 N |
| Weight | = | 0.04kg/m |
