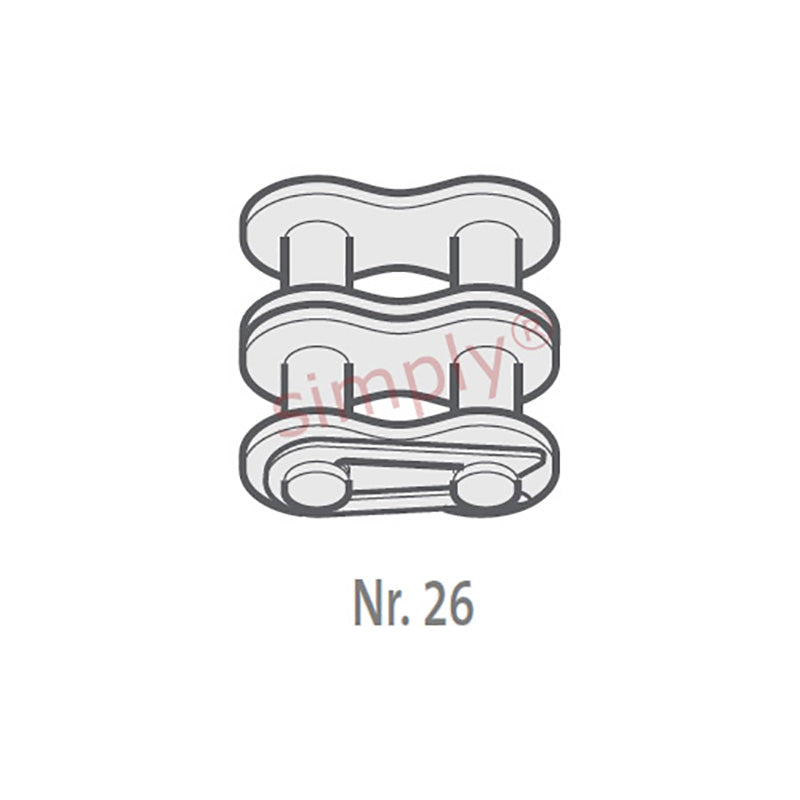

• Branded 80-2-NO26 ANSI / AS Duplex Chain Connecting Link With Spring Clip 1 inch Pitch
1 1

SKU: 80-2-NO26-MB

Branded 80-2-NO26 ANSI / AS Duplex Chain Connecting Link With Spring Clip 1 inch Pitch

Branded 80-2-NO26 ANSI / AS Duplex Chain Connecting Link With Spring Clip 1 inch Pitch
$9.47 ex VAT
$9.47 ex VAT
Sale Sold out

Equivalent to: 80-2-CL

In stock

Price Break
2+ $6.34
5+ $5.99
10+ $5.92
29+ $5.85
49+ $5.77
75+ $5.70
100+ $5.35
200+ $5.27
250+ $5.20
500+ $5.13
1000+ $4.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Pitch:
25.4mm = 1 inch
Technical
Pitch (A) 1 inch
Pitch (A) 25.4mm
Inside Width min (B) 15.75mm
Roller Diameter max (C) 15.88mm
Plate Height max (D) 24.1mm
Plate Width Inner max (E) 3.1mm
Plate Width Outer max (F) 3.1mm
Pin Diameter max (G) 7.92mm
Pin Length max (H2) 61.9mm
Connecting Link Extension max (J) 2.3mm
Transverse Pitch nom (K) 29.29mm
ISO606 Tensile Strength min 111200 N
Weight 0.04kg/m
