SKU: 80-2-SD-NO11-RENOLD
Renold SD 80-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 1 inch Pitch
- Regular price
- $20.38 ex VAT
- Sale price
- $20.38
- Regular price
-
Not in stock
Quantity Price Breaks
2
$18.14
5
$17.12
10
$16.92
29
$16.71
49
$16.51
75
$16.30
100
$15.29
200
$15.08
250
$14.88
500
$14.67
1000
$14.27
SKU:
80-2-SD-NO11-RENOLD
Renold SD 80-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 1 inch Pitch
- Regular price
- $20.38 ex VAT
- Sale price
- $20.38
- Regular price
-
Description

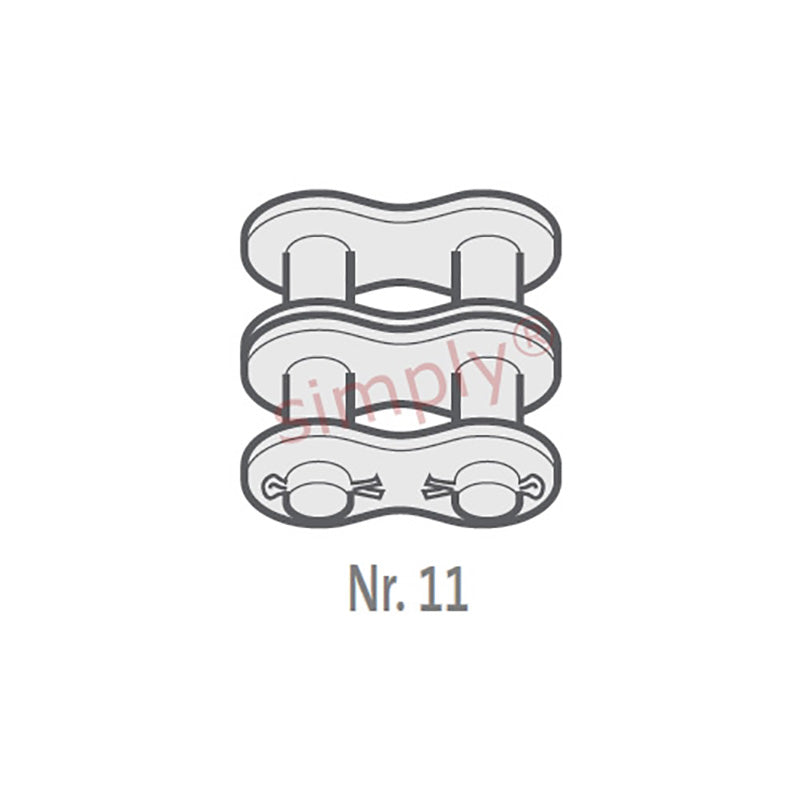

| Renold No. 11 ANSI Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
Technical
| Pitch (A) | = | 1 inch |
| Pitch (A) | = | 25.4mm |
| Inside Width min (B) | = | 15.75mm |
| Roller Diameter max (C) | = | 15.88mm |
| Plate Height max (D) | = | 24.1mm |
| Plate Width Inner max (E) | = | 3.1mm |
| Plate Width Outer max (F) | = | 3.1mm |
| Pin Diameter max (G) | = | 7.92mm |
| Pin Length max (H2) | = | 61.9mm |
| Connecting Link Extension max (J) | = | 2.3mm |
| Transverse Pitch nom (K) | = | 29.29mm |
| ISO606 Tensile Strength min | = | 111200 N |
| Weight | = | 0.04kg/m |
