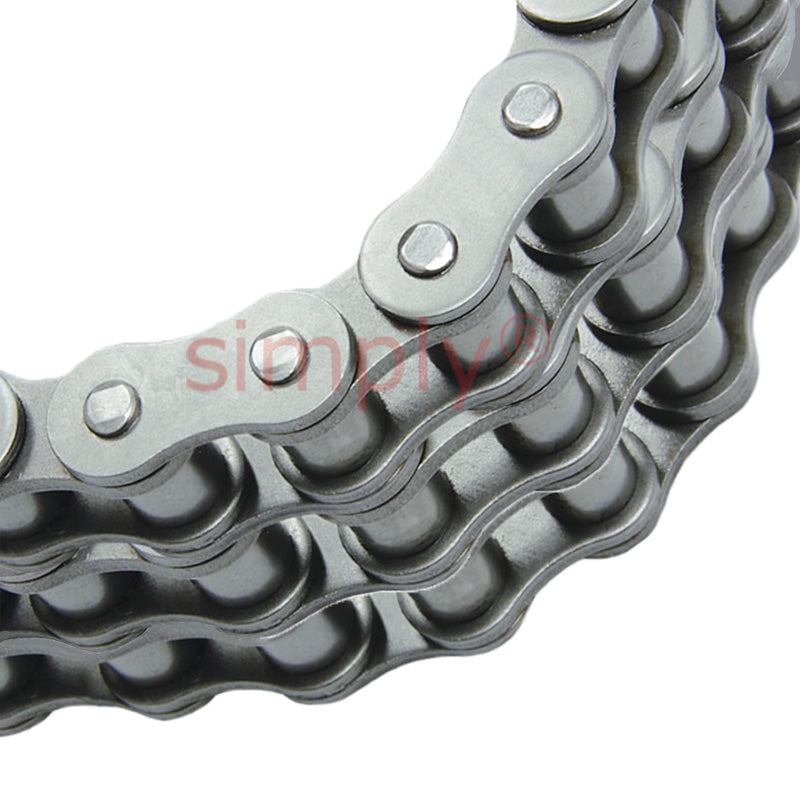

• Branded ANSI/ASA80-3 Triplex Roller Chain 1 inch Pitch 5 Metres
1 1

SKU: 80-3-5MTR-MB

Branded ANSI/ASA80-3 Triplex Roller Chain 1 inch Pitch 5 Metres

Branded ANSI/ASA80-3 Triplex Roller Chain 1 inch Pitch 5 Metres
$275.68 ex VAT
$275.68 ex VAT
Sale Sold out

In stock

Price Break
2+ $184.66
5+ $174.28
10+ $172.21
29+ $170.13
49+ $168.06
75+ $165.98
100+ $155.61
200+ $153.53
250+ $151.46
500+ $149.38
1000+ $145.24

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Pitch:
25.4mm = 1 inch
Technical
Pitch (P) 25.4mm = 1 inch
Roller Diameter (D1 max) 15.88mm
Width between inner plates (B1 min) 15.75mm
Pin dia meter (D2 max) 7.92mm
Pin length (L max) 62.7mm
Pin length (Lc max) 64.3mm
Inner plate depth (H2 max) 24mm
Plate thickness (T max) 3.25mm
Ultimate tensile strength (Q min) kN/LB 113.40/25773
Average tensile strength (Q0) kN 141.8
Transverse pitch (Pt) mm 29.29
Weight per meter (q) kg/m 5.15
