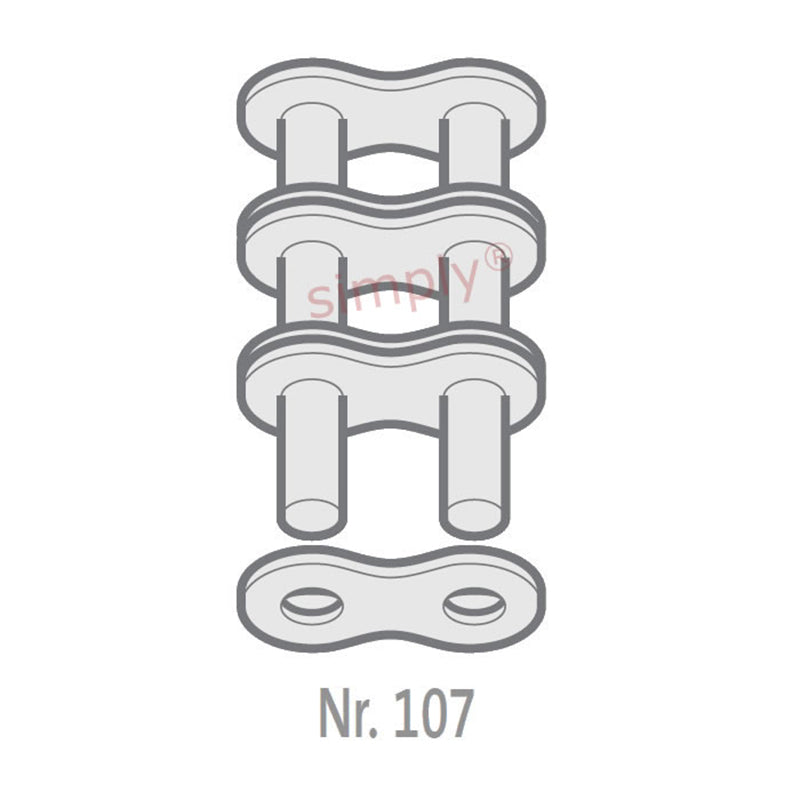

• Renold SD 80-3-NO107 ANSI / AS Triplex Chain Outer Link To Be Riveted 1 inch Pitch
  • Renold
1 2

SKU: 80-3-SD-NO107-RENOLD

Renold SD 80-3-NO107 ANSI / AS Triplex Chain Outer Link To Be Riveted 1 inch Pitch

Renold SD 80-3-NO107 ANSI / AS Triplex Chain Outer Link To Be Riveted 1 inch Pitch
$28.66 ex VAT
$28.66 ex VAT
Sale Sold out

In stock

Price Break
2+ $19.20
5+ $18.12
10+ $17.90
29+ $17.69
49+ $17.47
75+ $17.25
100+ $16.18
200+ $15.96
250+ $15.74
500+ $15.53
1000+ $15.10

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Renold - High Quality
Pitch:
25.4mm = 1 inch
Technical
Pitch (A) 1 inch
Pitch (A) 25.4mm
Inside Width min (B) 15.75mm
Roller Diameter max (C) 15.88mm
Plate Height max (D) 24.1mm
Plate Width Inner max (E) 3.1mm
Plate Width Outer max (F) 3.1mm
Pin Diameter max (G) 7.92mm
Pin Length max (H1) 90mm
Connecting Link Extension max (J) 6.3mm
ISO606 Tensile Strength min 166800 N
Weight 29.29kg/m
