• Renold SD 80-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 1 inch Pitch
  • Renold
1 2

SKU: 80-3-SD-NO11-RENOLD

Renold SD 80-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 1 inch Pitch

Renold SD 80-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 1 inch Pitch
$28.66 ex VAT
$28.66 ex VAT
Sale Sold out

In stock

Price Break
2+ $19.20
5+ $18.12
10+ $17.90
29+ $17.69
49+ $17.47
75+ $17.25
100+ $16.18
200+ $15.96
250+ $15.74
500+ $15.53
1000+ $15.10

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

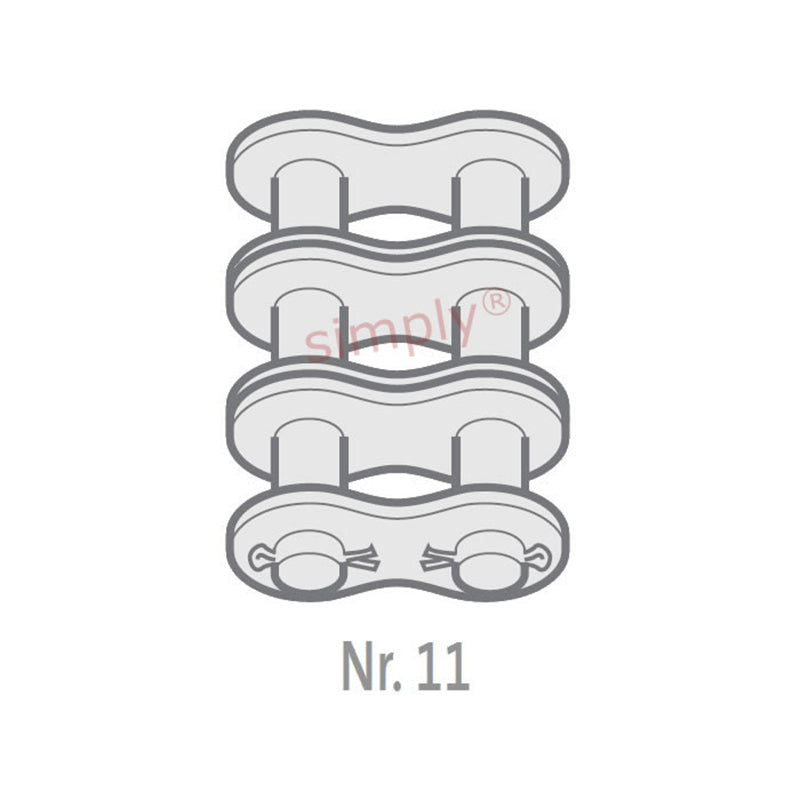

Renold No. 11 ANSI Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin.
Brand / Quality:
Renold - High Quality
Pitch:
25.4mm = 1 inch
Technical
Pitch (A) 1 inch
Pitch (A) 25.4mm
Inside Width min (B) 15.75mm
Roller Diameter max (C) 15.88mm
Plate Height max (D) 24.1mm
Plate Width Inner max (E) 3.1mm
Plate Width Outer max (F) 3.1mm
Pin Diameter max (G) 7.92mm
Pin Length max (H1) 90mm
Connecting Link Extension max (J) 6.3mm
ISO606 Tensile Strength min 166800 N
Weight 29.29kg/m
