• Renold SD 80-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 1 inch Pitch
  • Renold
1 2

SKU: 80-3-SD-NO26-RENOLD

Renold SD 80-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 1 inch Pitch

Renold SD 80-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 1 inch Pitch
$24.57 ex VAT
$24.57 ex VAT
Sale Sold out

In stock

Price Break
2+ $16.45
5+ $15.53
10+ $15.34
29+ $15.16
49+ $14.97
75+ $14.79
100+ $13.86
200+ $13.68
250+ $13.50
500+ $13.31
1000+ $12.94

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

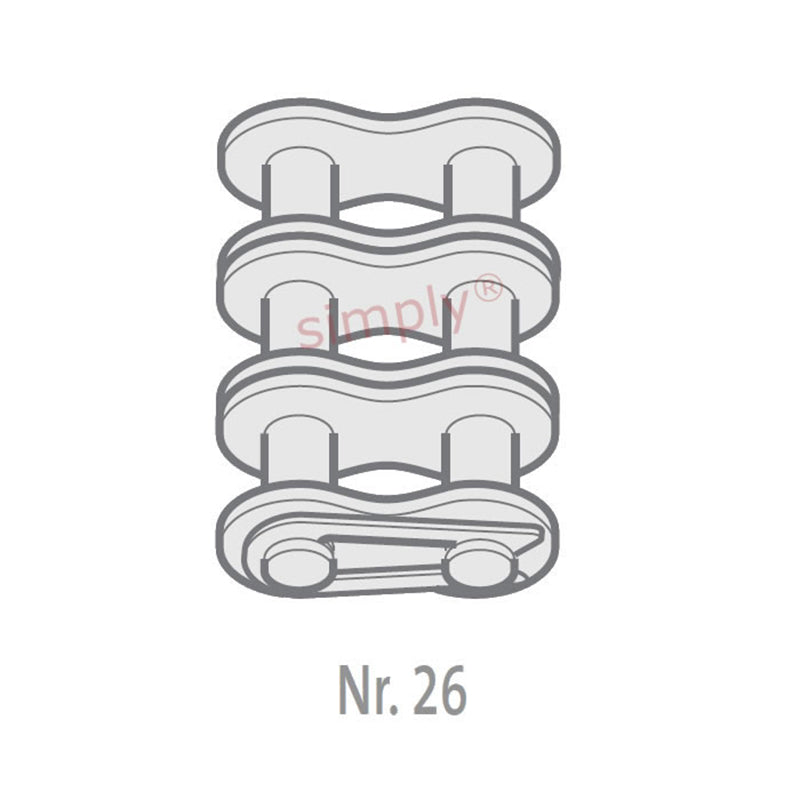

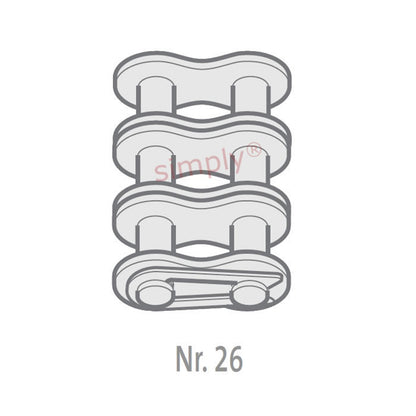

Renold No. 26 ANSI Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins.
Brand / Quality:
Renold - High Quality
Pitch:
25.4mm = 1 inch
Technical
Pitch (A) 1 inch
Pitch (A) 25.4mm
Inside Width min (B) 15.75mm
Roller Diameter max (C) 15.88mm
Plate Height max (D) 24.1mm
Plate Width Inner max (E) 3.1mm
Plate Width Outer max (F) 3.1mm
Pin Diameter max (G) 7.92mm
Pin Length max (H1) 90mm
Connecting Link Extension max (J) 6.3mm
ISO606 Tensile Strength min 166800 N
Weight 29.29kg/m
