• 800X6SPB 800mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)
  • 800X6SPB 800mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)
1 2

SKU: 800SPB6-MB

800X6SPB 800mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)

800X6SPB 800mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)
$677.48 ex VAT
$677.48 ex VAT
Sale Sold out

In stock

Price Break
3+ $453.79
5+ $428.30
9+ $423.20
19+ $418.10
49+ $413.00
74+ $407.91
99+ $382.41
199+ $377.31
249+ $372.21
499+ $367.11
999+ $356.92

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
6
Outside Diameter:
807.6mm
Pitch Diameter:
800mm
Max Bore:
110mm

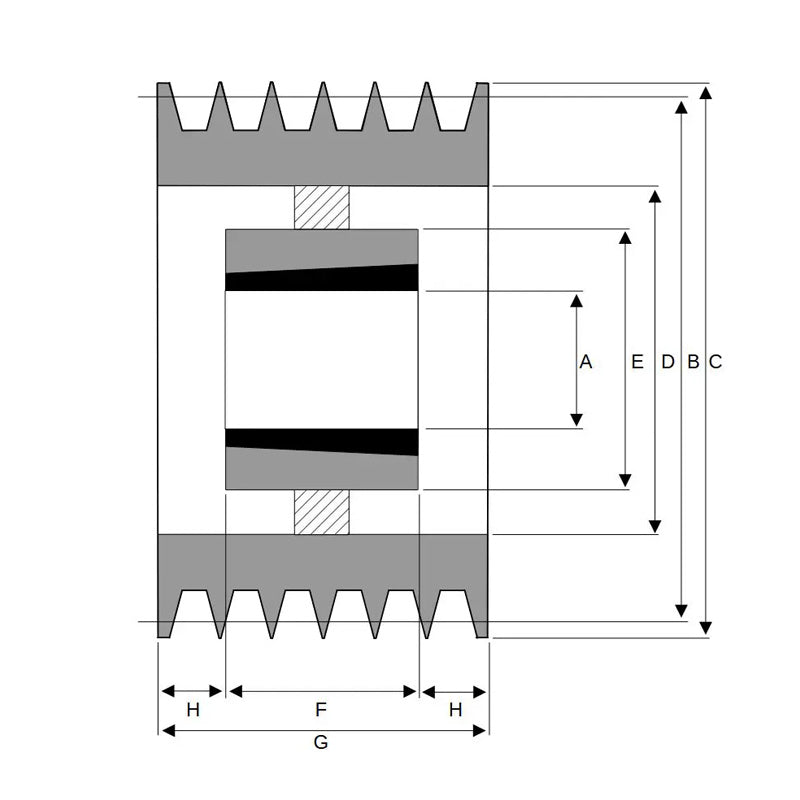

Technical
Number of Grooves 6
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=4535+tapered+locking+bush">4535 Click Here</a>
Pitch Diameter B 800mm
Overall Outer Diameter C 807.6mm
Max Bore A 110mm
Outer Hub Diameter E 242mm
Overall Sheave Depth F 120mm
Bush Seat Length G 114mm
Inner Recess Diameter D 754mm
Inner Recess Length H 3mm
