• 800X8SPC 800mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 8 Grooves (Bush not Incl.)
1 1

SKU: 800SPC8-MB

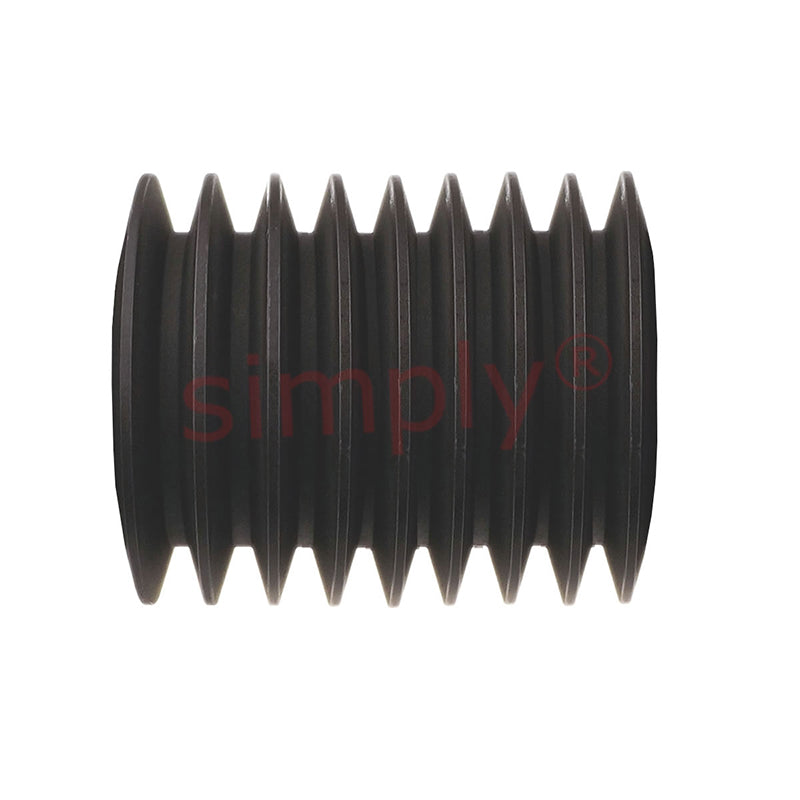

800X8SPC 800mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 8 Grooves (Bush not Incl.)

800X8SPC 800mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 8 Grooves (Bush not Incl.)
$1,091.67 ex VAT
$1,091.67 ex VAT
Sale Sold out

In stock

Price Break
3+ $731.23
5+ $690.15
9+ $681.93
19+ $673.72
49+ $665.50
74+ $657.29
99+ $616.21
199+ $607.99
249+ $599.77
499+ $591.56
999+ $575.12

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
8
Outside Diameter:
810.2mm
Pitch Diameter:
800mm
Max Bore:
125mm
Technical
Number of Grooves 8
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=5040+tapered+locking+bush">5040 Click Here</a>
Pitch Diameter B 800mm
Overall Outer Diameter C 810.2mm
Max Bore A 125mm
Outer Hub Diameter E 265mm
Overall Sheave Depth F 213mm
Bush Seat Length G 101.6mm
Inner Recess Diameter D 736mm
Inner Recess Length H 55.7mm
