SKU: 80x100x12_UIP_NAK

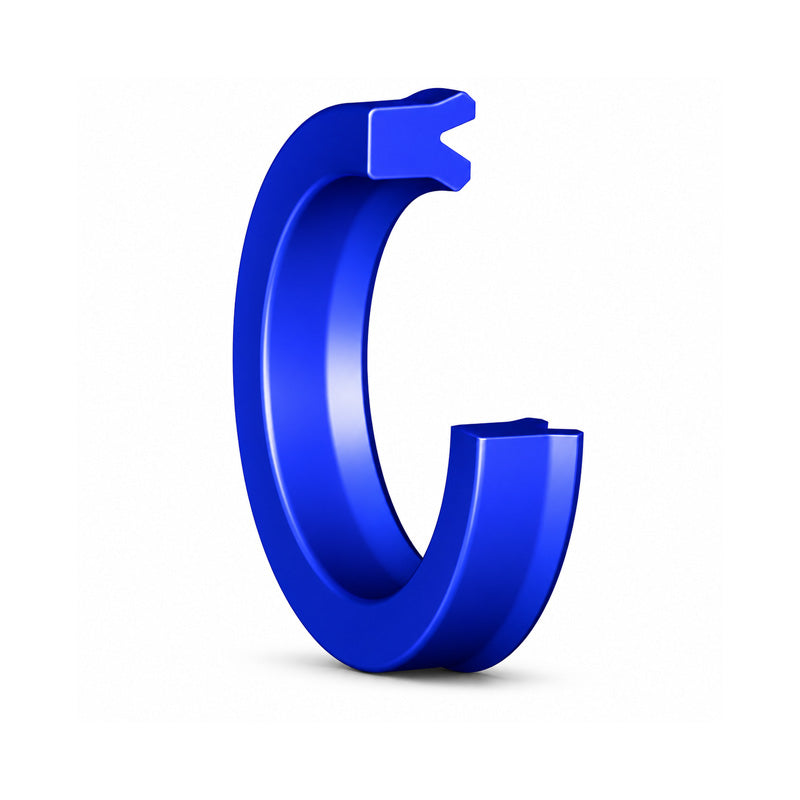

NAK 80x100x12mm UIP Polyurethane Rod Seal - Allow 7-10 Days
NAK 80x100x12mm UIP Polyurethane Rod Seal - Allow 7-10 Days
Out of stock
Share this product
Description
Description
NAK UIP Rod Seals: The UIP rod seal is a high-performance hydraulic sealing element developed by NAK for demanding rod-end applications. Featuring an asymmetric lip design, it delivers reliable sealing performance while offering enhanced protection against contamination and premature wear.
Benefits: Easy installation, extended operating life, low-friction operation even under high-speed conditions
- Brand / Quality:
- NAK - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 100mm
- Length:
- 12mm
- Material:
- Polyurethane
- Style:
- UIP
- Colour:
- Blue
Technical
Technical
| d | 80mm |
|---|---|
| D | 100mm |
| L | 13mm |
| h | 12mm |
| C | 5mm |
| Inside Diameter Tolerance | f8 |
| Outside Diameter Tolerance | H10 |
| Length Tolerance | 0.2mm |
| Pressure (max) | 40 Mpa |
| Sliding Speed (max) | 0.5 m/s |
| Temperature | -40 Deg C to +100 Deg C |
| Colour | Blue |
