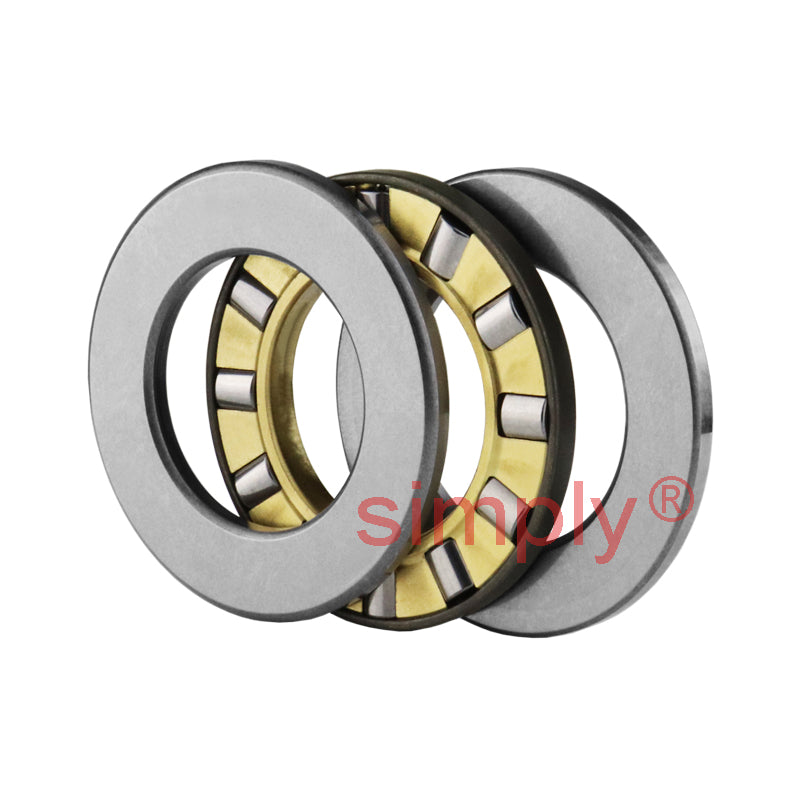

Major Brand 811/710M Cylindrical Roller Thrust Bearing with Brass Cage 710x850x112mm
Major Brand 811/710M Cylindrical Roller Thrust Bearing with Brass Cage 710x850x112mm
Out of stock
Share this product
Description
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 710mm
- Outside Diameter:
- 850mm
- Width:
- 112mm
Technical
Technical
| d | 710mm |
|---|---|
| D | 850mm |
| H | 112mm |
| Dynamic load C | 2900 kN |
| Static load Co | 18300 kN |
| Fatigue load limit Pu | 1120 kN |
| Min load factor A | 27 |
| Reference speed | 190 rpm |
| Limiting speed | 380 rpm |
| Weight | 155 kg |
